07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

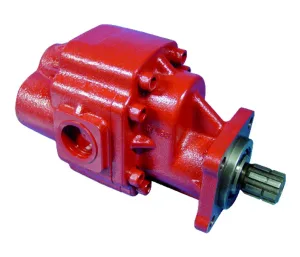

Gear pumps with heavy duty body, side and rear ports. Double support by taper roller bearings on the shaft. Output ISO 4 bolts. Technical Datasheet
Gear pumps with heavy duty body, side and rear ports. Double support by taper roller bearings on the shaft. Output ISO 4 bolts.
| Atributo | Valor |
|---|---|
| Displacement (cm3/rev) | 88.5(85), 103.3(100), 118 (115), 132.8 (130), 147.5 (150) |
| Maximum peak pressure (P3) (bar) | 250, 270, 290 |
| Maximum continuos pressure (P1) (bar) | 250 (BE XL 85), 250 (BE XL 115), 230 (BE XL 130), 210 (BE XL 150) |
| Speed (r.p.m) máx. (P1) | 2000 |
| Dimensions (mm) A | 228 (BE XL 85), 240 (BE XL 115), 246 (BE XL 130), 253 (BE XL 150) |
| Dimensions (mm) B | 142.5 (BE XL 85), 144 (BE XL 115), 150 (BE XL 130), 155 (BE XL 150) |
| Dimensions (mm.) C | 118.48 (BE XL 85), 124.6 (BE XL 115), 127.66 (BE XL 130), 130.7 (BE XL 150) |
| Dimensions (mm.) D | 23.1 (BE XL 85), 23.9 (BE XL 115), 24.3 (BE XL 130), 24.7 (BE XL 150) |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
