07264K03 Rear Pneumatic – Closed pump cover
MERCEDES

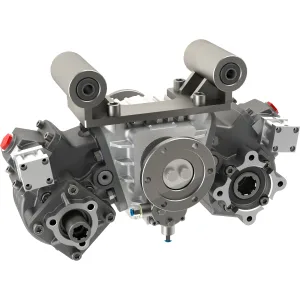

Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Suitable for vehicles up to 180 BHP.
SAE 6 bolt openings to fit up to two side PTOs to drive heavy duty auxiliary equipment.
Up to four outputs possible – two to the front, two to the rear of each side PTO.
Auxiliary power can be transmitted while the vehicle is in motion.
| SKU | Ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 6019199 | 1:1.2 | - | - | - | - |
| 6019299 | 1:1.47 | - | - | - | - |
Suitable for vehicles up to 180 BHP.
SAE 6 bolt openings to fit up to two side PTOs to drive heavy duty auxiliary equipment.
Up to four outputs possible – two to the front, two to the rear of each side PTO.
Auxiliary power can be transmitted while the vehicle is in motion.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 4000 |
| Intermittent Torque (Nm) | 4950 |
| Max. Continuous Output Torque (Nm) | 480, 320 |
| Max. Intermittent Output Torque (Nm) | 250, 400 |
| Rotation PTO | Same as engine |
| Output type | Manual for Emergency, Pneumatic |
| PTO operational with vehicle | In Motion, Stationary |
| Ratio | 1:1.47, 1:1.2 |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
