0724703 REAR PNEUMATIC C.P. HEAVY DUTY
MERCEDES
Heavy Duty Power Take-off with rotated output to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 5 bolts...
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch. Upper Output Bottom Output Max. Torque Continuous 350 300 Intermittent 490 420 Power (1000 r.p.m.) 52 C.V // 39 KW 42 .C.V // 32 KW RATIO ENGINE […]
| SKU | Output types | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 0723450 | Pump | Plate | - | - | - | - |
| 0723452 | Plate | Plate | - | - | - | - |
| 0723451 | Plate | Pump | - | - | - | - |

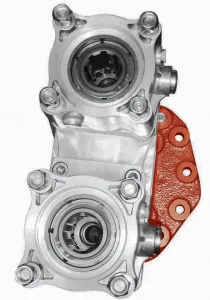

Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing
contact switch.
| Atributo | Valor |
|---|---|
| Max. Continuous Toque for both outputs | 490 Nm. |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Lubrication Kit (9013899) |
| Note E | Pressure switch. P/N 100070018 |
| Note F | Flange Drive |
| Note G | Closed lubrication pump cover |
| Note H | Passing contact switch. P/N 9024999 |
| Gearbox | G131-9-14.57-1.0, G211-12-14.93-1.0 NewAMT, G211-12K-14.93-1.0 |
| Output types | Pump, Plate |
| Output type | Plate, Pump |
Direct Power Take-off, to connect ISO 4 bolts pumps. Mounting on rear 4 holes-window of the Gearbox.
