0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...

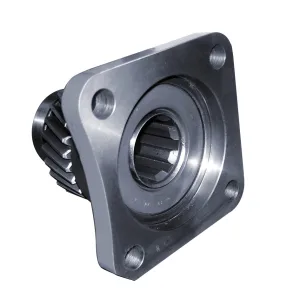

Direct Power Take-off, to connect ISO 4 bolts pumps. Mounting on rear 4 holes-window of the Gearbox.
| SKU | Type | Bearing type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 075203 | G28, G32, G33 | Ball Bearing | 2.30 | - | 80.00 | 80.00 |
| 075303 | G28, G32, G33 | Taper Roller Bearing | 2.30 | - | 80.00 | 80.00 |
| 0717503 | NSG370-6, NSG400-6, TSG360, TSG480 | Ball Bearing | 2.30 | - | 80.00 | 80.00 |
| 0717403 | NSG370-6, NSG400-6, TSG360, TSG480 | Taper Roller Bearing | 2.30 | - | 80.00 | 80.00 |
Direct Power Take-off, to connect ISO 4 bolts pumps. Mounting on rear 4 holes-window of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 140 |
| Intermittent Torque (Nm) | 190 |
| Power (1000 r.p.m.) | 20 C.V // 15 kW |
| Mounting Position | Rear |
| Pump rotation G28, G32, G33 | ClockWise |
| Pump rotation NSG370-6, NSG400-6, TSG360, TSG480 | Anti ClockWise |
| Weight (Kg) | 2.3 |
| Engine to PTO ratio G28, G32, G33 NSG370-6, NSG400-6 | 1: 0,9 |
| Engine to PTO ratio TSG360, TSG480 | 1:0.756 |
| Gearbox | G28, G32, G33, NSG 370-6, NSG 400-6, TSG-360, TSG-480 |
| Type | G28, G32, G33, NSG370-6, NSG400-6, TSG360, TSG480 |
| Bearing type | Ball Bearing, Taper Roller Bearing |
