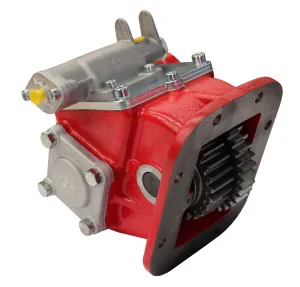

8500 SAE 8 Holes, Heavy duty, Pneumatic

8500-8h

The 8500 series is a super heavy-duty PTO with a variety of output and ratio options, to fit almost any application. Compared to competitive models, the 8500 is 10-20% lighter for equivalent performance. It’s the perfect PTO for applications requiring maximum torque and horsepower capabilities.

8500 PTO Manual | 8500 PTO Data Sheet | 8500 PTO Part List

Variantes

High torque and HP ratings for grueling applications.
10-20% lighter weight than comparably rated PTOs.

Symmetrical housing design allows for multiple configuration options to fit the application.

Industry leading gasket material and Viton O-ring material & shaft seals.
Large, oversize bearings provide long life on higher torque applications such as blowers.
Robust housing for durability and clearances when used with large bodied pumps.

Competitive with:
Muncie 828, Chelsea 880

Torque ratings: up to 500 lb. ft.

Typical Applications:

Blowers
Cryogenic pumps
Log Loaders
And more…..

8500 PTO Manual | 8500 PTO Data Sheet | 8500 PTO Part List

Engine to PTO ratio
INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
	Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m.	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m
61%(B)	500	48	95	400	38	76
72%(C)	500	48	95	400	38	76
85%(E)	480	45	90	370	35	70
108% (J)	450	43	86	340	33	65
127% (O)	400	38	76	300	28	57
138% (R)	360	34	68	270	26	52
150% (S)	320	31	62	240	23	46
163% (T)	280	27	54	210	20	40
