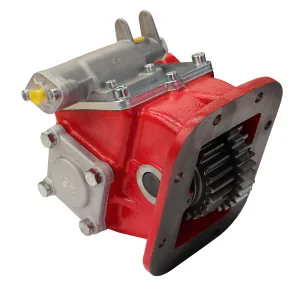

8500 SAE 8 Holes, Heavy duty, Pneumatic

8500-8h

The 8500 series is our PTO designed for those applications with maximum torque and horsepower  requirements. A broad range of ratios and outputs are available. It comes standard with air shift. This PTO also has the same smooth engagement design as our 4100 series which increases the gear life of the PTO. Engine to PTO ratio […]

Variantes

The 8500 series is our PTO designed for those applications with maximum torque and horsepower  requirements. A broad range of ratios and outputs are available. It comes standard with air shift. This PTO also has the same smooth engagement design as our 4100 series which increases the gear life of the PTO.

Engine to PTO ratio
INTERNAL RATIO INTERMITTENT SERVICE CONTINUOUS SERVICE
Torque
(Lb. FT)
Power (HP) Torque
(Lb. FT)
Power (HP)
At 500 r.p.m. At. 1000 r.p.m. At 500 r.p.m. At. 1000 r.p.m
57%(B) 500 48 95 400 38 76
70%(C) 500 48 95 400 38 76
86%(E) 480 45 90 370 35 70
105% (J) 450 43 86 340 33 65
127% (O) 400 38 76 300 28 57
137% (R) 360 34 68 270 26 52
150% (S) 320 31 62 240 23 46
164% (T) 280 27 54 210 20 40
Este producto no tiene especificaciones.
