1216803 INFERIOR NEUMATICO REFORZADO

1216803
EATON FULLER

Toma de fuerza de dos piñones, con varias relaciones de transmisión ,en toma constante con salida de compacto para montar bombas ISO 4 taladros. Accionamiento neumático, montaje en el registro inferior de ocho taladros de la caja de cambios.   RELACIÓN Interna TRABAJO INTERMITENTE TRABAJO CONTÍNUO   Par (Nm) Potencia @ 1000 rpm   Par […]

Variantes

SKU Output type Internal ratio Peso (kg) A (cm) B (cm) C (cm)
1216802B Plato B (57%) - - - -
1216802C Plato C (70%) - - - -
1216802E Plato E (86%) - - - -
1216802J Plato J (105%) - - - -
1216803B Bomba (DIN 5462) B (57%) - - - -
1216803C Bomba (DIN 5462) C (70%) - - - -
1216803 Bomba (DIN 5462) E (86%) - - - -
1216803J Bomba (DIN 5462) J (105%) - - - -
1216802B
Output type: Plato
Internal ratio: B (57%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216802C
Output type: Plato
Internal ratio: C (70%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216802E
Output type: Plato
Internal ratio: E (86%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216802J
Output type: Plato
Internal ratio: J (105%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216803B
Output type: Bomba (DIN 5462)
Internal ratio: B (57%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216803C
Output type: Bomba (DIN 5462)
Internal ratio: C (70%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216803
Output type: Bomba (DIN 5462)
Internal ratio: E (86%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216803J
Output type: Bomba (DIN 5462)
Internal ratio: J (105%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -

Toma de fuerza de dos piñones, con varias relaciones de transmisión ,en toma constante con salida de compacto para montar bombas ISO 4 taladros. Accionamiento neumático, montaje en el registro inferior de ocho taladros de la caja de cambios.



RELACIÓN Interna

 TRABAJO INTERMITENTE TRABAJO CONTÍNUO


Par (Nm)

 Potencia @ 1000 rpm

Par (Nm)

 Potencia @ 1000 rpm
CV KW CV KW
57%(B) 610 87 65 430 62 46
70%(C) 635 90 67 460 65 48
86%(E) 635 90 67 460 65 48
105%(J) 540 77 57 405 58 43





CAJA DE CAMBIOS

 RELACIÓN INTERNA

CAJA DE CAMBIOS

 RELACIÓN INTERNA

CAJA DE CAMBIOS

 RELACIÓN INTERNA
B 57% C 70% E 86% J 105% B 57% C 70% E 86% J 105% B 57% C 70% E 86% J 105%
RT509 0,607 0,745 0,916 1,118 RT6610 0,603 0,74 0,909 1,11 RT11613 0,836 1,027 1,261 1,54
RT510 0,607 0,745 0,916 1,118 RTO6610 0,753 0,925 1,137 1,388 RT11613C 0,836 1,027 1,261 1,54
RT609 0,607 0,745 0,916 1,118 RT6613 0,603 0,74 0,909 1,11 RTF11613 0,836 1,027 1,261 1,54
RTO609 0,753 0,925 1,137 1,388 RTO6613 0,754 0,926 1,138 1,389 RTO11613 0,836 1,027 1,261 1,54
RT610 0,607 0,745 0,916 1,118 RT7609 0,607 0,745 0,916 1,118 RTOF11613 0,836 1,027 1,261 1,54
RT613 0,607 0,745 0,916 1,118 RTO7609 0,801 0,983 1,208 1,475 RTOO11613 0,942 1,157 1,421 1,735
RTO613 0,753 0,925 1,137 1,388 RTX7609 0,801 0,983 1,208 1,475 RTOOF11613 0,942 1,157 1,421 1,735
T905G 0,836 1,027 1,261 1,54 TA7610 0,836 1,027 1,261 1,54 RTOOX11613 0,942 1,157 1,421 1,735
RT906 0,836 1,027 1,261 1,54 RT7613 0,603 0,74 0,909 1,11 RTX11613B 1,118 1,373 1,687 2,06
RT906A 0,836 1,027 1,261 1,54 RTO7613 0,603 0,74 0,909 1,11 RT11615 0,836 1,027 1,261 1,54
RTF906 0,836 1,027 1,261 1,54 RT9509A 0,836 1,027 1,261 1,54 RTO11615 1,056 1,297 1,594 1,946
RTF906A 0,836 1,027 1,261 1,54 RT9509C 0,836 1,027 1,261 1,54 RTOX11708LL 1,126 1,383 1,7 2,075
RT909 0,836 1,027 1,261 1,54 RTF9509A 0,836 1,027 1,261 1,54 RTX11709B 0,942 1,157 1,421 1,735
RT909A 0,836 1,027 1,261 1,54 RTO9509A 1,126 1,383 1,7 2,075 RT11710B 0,836 1,027 1,261 1,54
RTF909 0,836 1,027 1,261 1,54 RTO9509B 0,942 1,157 1,421 1,735 RT11715 0,836 1,027 1,261 1,54
RTF909A 0,836 1,027 1,261 1,54 RTOF9509A 1,126 1,383 1,7 2,075 RTO11715 1,056 1,297 1,594 1,946
RTO909A 1,129 1,387 1,704 2,08 RTOF9509B 0,942 1,157 1,421 1,735 RT12509 0,836 1,027 1,261 1,54
RTO909B 1,129 1,387 1,704 2,08 MRTO9509A 1,126 1,383 1,7 2,075 RTF12509 0,836 1,027 1,261 1,54
RTOF909A 1,129 1,387 1,704 2,08 MRTO9509B 0,942 1,157 1,421 1,735 RTO12509 1,129 1,387 1,704 2,08
RTOF909B 1,129 1,387 1,704 2,08 RT9513 0,836 1,027 1,261 1,54 RTOF12509 1,129 1,387 1,704 2,08
RT910 0,836 1,027 1,261 1,54 RTF9513 0,836 1,027 1,261 1,54 RT12510 0,836 1,027 1,261 1,54
RTF910 0,836 1,027 1,261 1,54 RTO9513 0,836 1,027 1,261 1,54 RTO12510 1,061 1,303 1,6 1,954
RTO910 1,035 1,271 1,561 1,906 RTOF9513 0,836 1,027 1,261 1,54 RTF12510 0,836 1,027 1,261 1,54
RT913 0,836 1,027 1,261 1,54 MRT9513 0,836 1,027 1,261 1,54 RTOF12510 1,061 1,303 1,6 1,954
RTF913 0,836 1,027 1,261 1,54 MRTO9513 0,836 1,027 1,261 1,54 RT12513 0,836 1,027 1,261 1,54
RTO913 0,836 1,027 1,261 1,54 RTOO9513 0,942 1,157 1,421 1,735 RTO12513 0,836 1,027 1,261 1,54
RTO913A 0,836 1,027 1,261 1,54 RT11509 0,836 1,027 1,261 1,54 RT12515 0,836 1,027 1,261 1,54
RTOF913 0,836 1,027 1,261 1,54 RTO11509 1,126 1,383 1,7 2,075 RTF12515 0,836 1,027 1,261 1,54
RT915 0,836 1,027 1,261 1,54 RT11608 0,686 0,843 1,035 1,264 RTO12515 0,836 1,027 1,261 1,54
RTF915 0,836 1,027 1,261 1,54 RTO11608LL 1,118 1,373 1,687 2,06 RT12609A 0,836 1,027 1,261 1,54
RTO915 1,035 1,271 1,561 1,906 RT11609A 0,836 1,027 1,261 1,54 RTO12609A 1,126 1,383 1,7 2,075
T955GL 0,836 1,027 1,261 1,54 RTF11609A 0,836 1,027 1,261 1,54 RTO12609B 0,942 1,157 1,421 1,735
RT958LL 1,129 1,387 1,704 2,08 RTO11609A 1,118 1,373 1,687 2,06 RT12610 0,836 1,027 1,261 1,54
RTO958LL 1,129 1,387 1,704 2,08 RTO11609B 0,942 1,157 1,421 1,735 RT12710B 0,836 1,027 1,261 1,54
RT1110 0,836 1,027 1,261 1,54 RTX11609A 1,118 1,373 1,687 2,06 RTO12710B 1,118 1,373 1,687 2,06
RTO1110 1,061 1,303 1,6 1,954 RTOF11609A 1,118 1,373 1,687 2,06 RTX12710B 1,118 1,373 1,687 2,06
RTO1213 0,836 1,027 1,261 1,54 RTOF11609B 0,942 1,157 1,421 1,735 RT13710B 0,836 1,027 1,261 1,54
RTO1258LL 1,129 1,387 1,704 2,08 RTOX11609A 1,118 1,373 1,687 2,06 RT14608 0,686 0,843 1,035 1,264
TA4510 0,836 1,027 1,261 1,54 MRT11609 0,836 1,027 1,261 1,54 RTO14608LL 1,118 1,373 1,687 2,06
RTO6609 0,753 0,925 1,137 1,388 RT11610 0,836 1,027 1,261 1,54 RT14609A 0,836 1,027 1,261 1,54
RTX6609 0,754 0,926 1,138 1,389 RTO11610 1,056 1,297 1,594 1,946 RTF14609A 0,836 1,027 1,261 1,54
RTOX6609 0,753 0,925 1,137 1,388


CAJA DE CAMBIOS

 RELACIÓN INTERNA

CAJA DE CAMBIOS

 RELACIÓN INTERNA

CAJA DE CAMBIOS

 RELACIÓN INTERNA
B 57% C 70% E 86% J 105% B 57% C 70% E 86% J 105% B 57% C 70% E 86% J 105%
RTO14609A 1,118 1,373 1,687 2,06 9 VELOCIDADES 11 VELOCIDADES
RTO14609B 0,942 1,157 1,421 1,735 RT-6609A 0,589 0,723 0,888 1,085 RTO-11909ALL 0,92 1,13 1,388 1,695
RTX14609A 1,118 1,373 1,687 2,06 RT-8608L 0,676 0,83 1,019 1,244 RTO-14909ALL 0,92 1,13 1,388 1,695
RTOF14609A 1,118 1,373 1,687 2,06 RTX-11609B 0,92 1,13 1,388 1,695 RTO-16909ALL 0,92 1,13 1,388 1,695
RTOF14609B 0,942 1,157 1,421 1,735 RTX-12609B 0,92 1,13 1,388 1,695 13 VELOCIDADES
RTOX14609B 0,942 1,157 1,421 1,735 RTX-13609B 0,92 1,13 1,388 1,695 RTLO-12913A 0,92 1,13 1,388 1,695
RT14610 0,836 1,027 1,261 1,54 RTX-14609B 0,92 1,13 1,388 1,695 RTLO-14913A 0,92 1,13 1,388 1,695
RTO14610 1,056 1,297 1,594 1,946 RTX-16709B 0,92 1,13 1,388 1,695 RTLO-16913A 0,92 1,13 1,388 1,695
RT14613 0,836 1,027 1,261 1,54 RT-8709B 0,815 1,001 1,23 1,502 RTLO-18913A 0,92 1,13 1,388 1,695
RT14613B 0,836 1,027 1,261 1,54 RT-11709H 0,815 1,001 1,23 1,502 RTLO-20913A 0,92 1,13 1,388 1,695
RTF14613 0,836 1,027 1,261 1,54 RT-12709H 0,815 1,001 1,23 1,502 15 VELOCIDADES
RTLO14613B 0,836 1,027 1,261 1,54 RT-13709H 0,815 1,001 1,23 1,502 RT-14915 0,815 1,001 1,23 1,502
RTO14613 0,836 1,027 1,261 1,54 RT-14709H 0,815 1,001 1,23 1,502 RTO-14915 1,037 1,273 1,564 1,91
RTOF14613 0,836 1,027 1,261 1,54 RTOC-16909A 0,815 1,001 1,23 1,502 RTO-16915 1,037 1,273 1,564 1,91
RTOO14613 0,942 1,157 1,421 1,735 10 VELOCIDADES 18 VELOCIDADES
RTOOF14613 0,942 1,157 1,421 1,735 RT-8908LL 0,815 1,001 1,23 1,502 RTLO-14918B 0,92 1,13 1,388 1,695
RTOOX14613 0,942 1,157 1,421 1,753 RTO-11908LL 1,095 1,345 1,652 2,017 RTLO-16918B 0,92 1,13 1,388 1,695
RT14615 0,836 1,027 1,261 1,54 RTO-14908LL 1,095 1,345 1,652 2,017 RTLO-18918B 0,92 1,13 1,388 1,695
RTO14615 1,056 1,297 1,594 1,946 RTO-16908LL 1,095 1,345 1,652 2,017 RTLO-20918B 0,92 1,13 1,388 1,695
RTX14615 1,056 1,297 1,594 1,946 FR-9210B 0,757 0,93 1,142 1,395 RTLO-22918B 0,92 1,13 1,388 1,695
RTLOF14618A 0,836 1,027 1,261 1,54 FR-11210B 0,757 0,93 1,142 1,395
RTOX14708LL 1,126 1,383 1,7 2,075 FR-12210B 0,757 0,93 1,142 1,395
RT14710B 0,836 1,027 1,261 1,54 FR-13210B 0,757 0,93 1,142 1,395
RTO14710B 1,118 1,373 1,687 2,06 FR-14210B 0,757 0,93 1,142 1,395
RT14715 0,836 1,027 1,261 1,54 FR-15210B 0,757 0,93 1,142 1,395
RTO14715 1,056 1,297 1,594 1,946 FRO-11210B 1,013 1,244 1,529 1,867
RTX14715 1,056 1,297 1,594 1,946 FRO-12210B 1,013 1,244 1,529 1,867
RTLO14718B 0,942 1,157 1,421 1,735 FRO-13210B 1,013 1,244 1,529 1,867
RT15613 0,836 1,027 1,261 1,54 FRO-14210B 1,013 1,244 1,529 1,867
RT15613A 0,836 1,027 1,261 1,54 FRO-15210B 1,013 1,244 1,529 1,867
RT15613B 0,836 1,027 1,261 1,54 FRO-16210B 1,013 1,244 1,529 1,867
RTO15613 0,836 1,027 1,261 1,54 FRO-11210C 1,013 1,244 1,529 1,867
RTO15613A 0,836 1,027 1,261 1,54 FRO-12210C 0,978 1,202 1,476 1,802
RTO15613B 0,836 1,027 1,261 1,54 FRO-13210C 0,978 1,202 1,476 1,802
RT15615 0,942 1,157 1,421 1,735 FRO-14210C 0,978 1,202 1,476 1,802
RTO15615 0,836 1,027 1,261 1,54 FRO-15210C 0,978 1,202 1,476 1,802
RTO15618 0,836 1,027 1,261 1,54 FRO-16210C 0,978 1,202 1,476 1,802
RT15715 0,836 1,027 1,261 1,54 FRO-17210C 0,978 1,202 1,476 1,802
RTO15715 1,056 1,297 1,594 1,946 FRO-18210C 0,978 1,202 1,476 1,802
RTLO16618A 0,836 1,027 1,261 1,54
RTLO16718B 0,942 1,157 1,421 1,735
RTLO18718B 0,942 1,157 1,421 1,735

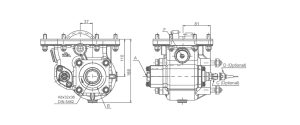

AtributoValor
Mounting Position Abajo
Sentido de giro de la bomba Izquierdo
Weight (Kg) 17
Note A Toma de aire, rosca 1/4” GAS
Note B Rotation
Note D Connector with 3m of cable P/N. 9026899
Note F Tapón comprobación juego de engranajes
Gearbox FRO-12210C, RT-1110, RT-12709H, RT-15615, RT-909A, RTF-906A, RTLO-18913A, RTO-1213, RTO-14715, RTO-6613, RTOF-12510, RTOX-11708LL, T-905G, FRO-13210B, RT-11509, RT-12710B, RT-15715, RT-910, RTF-910, RTLO-18918B, RTO-12509, RTO-14908LL, RTO-7613, RTOF-14609A, RTOX-14609B, T-955GL, FRO-13210C, RT-11608, RT-13709H, RT-509, RT913, RTF-913, RTLO-20913A, RTO-12510, RTO-14909ALL, RTO-909A, RTOF-14609B, RTOX-14708LL, RTLO-22918B, FRO-14210B, RT-11609A, RT-13710B, RT-510, RT-915, RTF-915, RTLO-20918B, RTO-12513, RTO-14915, RTO909B, RTOF-14613, RTOX-6609, TA-4510, FRO-14210C, RT-11610, RT-14608, RT-609, RT-9509A, RTF-9509A, RTLOF14618A, RTO-12515, RTO-15613, RTO-910, RTOF-913, RTX11609A, TA-7610, FRO-15210B, RT-11613, RT-14609A, RT-613, RT-9509C, RTF-9513, RTO-1110, RTO-1258LL, RTO-15613A, RTO-913, RTOF-9509A, RTX11609B, RT-14715, FRO-15210C, RT-11613C, RT-14610, RT-6609A, RT-9513, RTLO-12913A, RTO-11509, RTO-12609A, RTO-15613B, RTO-913A, RTOF-9509B, RTX11613B, FR-11210B, FRO-16210B, RT-11615, RT-14613, RT-6610, RT-958LL, RTLO-14613B, RTO-11608LL, RTO-12609B, RTO-15615, RTO-9509A, RTOF-9513, RTX11709B, FR-12210B, FRO-16210C, RT-11709H, RT-14613B, RT-6613, RTF-11609A, RTLO-14718B/B-T2, RTO-11609A, RTO-12710B, RTO-15618, RTO-9509B, RTOO-11613, RTX12609B, FR-13210B, FRO-17210C, RT-11710B, RT-14615, RT-7613, RTF-11613, RTLO-14913A, RTO-11609B, RTO-14608LL, RTO-15715, RTO-9513, RTOO-14613, RTX12710B, FR-14210B, FRO-18210C, RT-11715, RT-14709H, RT-8608L, RTF-12509, RTLO-14918B, RTO-11610, RTO-14609A, RTO-16908LL, RTO-958LL, RTOO-9513, RTX13609B, FR-15210B, MRT-11609, RT-12509, RT-14710B, RT-8709B, RTF12510, RTLO-16618A, RTO-11613, RTO-14609B, RTO-16909ALL, RTOC-16909A, RTOOF-11613, RTX14609B, FR-9210B, MRT-9513, RT-12510, RT-14915, RT-8908LL, RTF-12515, RTLO-16718B/B-T2, RTO-11615, RTO-14610, RTO-16915, RTOF-11609A, RTOOF-14613, RTX14615, FRO-11210B, MRTO-9509A, RT-12513, RT-15613, RT-906, RTF-14609A, RTLO-16913A, RTO-11715, RTO-14613, RTO-609, RTOF-11609B, RTOOX-11613, RTX-14715, FRO-11210C, MRTO-9509B, RT-12515, RT-15613A, RT-906A, RTF-14613, RTLO-16918B, RTO-11908LL, RTO-14615, RTO-613, RTOF-11613, RTOOX-14613, RTX16709B, FRO-12210B, MRTO-9513, RT-12610, RT-15613B, RT-909, RTF-906, RTLO-18718B, RTO-11909ALL, RTO-14710B, RTO-6610, RTOF-12509, RTOX-11609A, RTX6609
Output type Bomba (DIN 5462), Plato, Flange, Pump (DIN 5462)
Internal ratio B (57%), C (70%), E (86%), J (105%)
