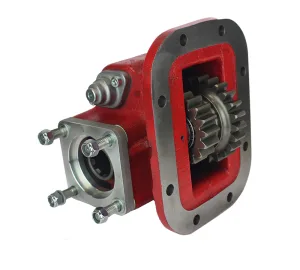

1216803 BOTTOM PNEUMATIC HEAVY DUTY

1216803
EATON

Power Take-off two gears, low different transmission ratio, constant mesh with compact output to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on 8 bolt-bottom window of the Gearbox.   Internal ratio Intermittent Service Continuos Service   Par Torque (Nm) Power @ 1000 rpm   Par Torque (Nm) Power @ 1000 rpm CV KW CV […]

Variantes

SKU Output type Internal ratio Peso (kg) A (cm) B (cm) C (cm)
1216802B Flange B (57%) - - - -
1216802C Flange C (70%) - - - -
1216802E Flange E (86%) - - - -
1216802J Flange J (105%) - - - -
1216803B Pump (DIN 5462) B (57%) - - - -
1216803C Pump (DIN 5462) C (70%) - - - -
1216803 Pump (DIN 5462) E (86%) - - - -
1216803J Pump (DIN 5462) J (105%) - - - -
1216802B
Output type: Flange
Internal ratio: B (57%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216802C
Output type: Flange
Internal ratio: C (70%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216802E
Output type: Flange
Internal ratio: E (86%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216802J
Output type: Flange
Internal ratio: J (105%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216803B
Output type: Pump (DIN 5462)
Internal ratio: B (57%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216803C
Output type: Pump (DIN 5462)
Internal ratio: C (70%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216803
Output type: Pump (DIN 5462)
Internal ratio: E (86%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
1216803J
Output type: Pump (DIN 5462)
Internal ratio: J (105%)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -

Power Take-off two gears, low different transmission ratio, constant mesh with compact output to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on 8 bolt-bottom window of the Gearbox.



Internal ratio

 Intermittent Service Continuos Service


Par Torque (Nm)

 Power @ 1000 rpm

Par Torque (Nm)

 Power @ 1000 rpm
CV KW CV KW
57%(B) 610 87 65 430 62 46
70%(C) 635 90 67 460 65 48
86%(E) 635 90 67 460 65 48
105%(J) 540 77 57 405 58 43





GEARBOX

 INTERNAL RATIO

GEARBOX

 INTERNAL RATIO

GEARBOX

 INTERNAL RATIO
B 57% C 70% E 86% J 105% B 57% C 70% E 86% J 105% B 57% C 70% E 86% J 105%
RT509 0,607 0,745 0,916 1,118 RT6610 0,603 0,74 0,909 1,11 RT11613 0,836 1,027 1,261 1,54
RT510 0,607 0,745 0,916 1,118 RTO6610 0,753 0,925 1,137 1,388 RT11613C 0,836 1,027 1,261 1,54
RT609 0,607 0,745 0,916 1,118 RT6613 0,603 0,74 0,909 1,11 RTF11613 0,836 1,027 1,261 1,54
RTO609 0,753 0,925 1,137 1,388 RTO6613 0,754 0,926 1,138 1,389 RTO11613 0,836 1,027 1,261 1,54
RT610 0,607 0,745 0,916 1,118 RT7609 0,607 0,745 0,916 1,118 RTOF11613 0,836 1,027 1,261 1,54
RT613 0,607 0,745 0,916 1,118 RTO7609 0,801 0,983 1,208 1,475 RTOO11613 0,942 1,157 1,421 1,735
RTO613 0,753 0,925 1,137 1,388 RTX7609 0,801 0,983 1,208 1,475 RTOOF11613 0,942 1,157 1,421 1,735
T905G 0,836 1,027 1,261 1,54 TA7610 0,836 1,027 1,261 1,54 RTOOX11613 0,942 1,157 1,421 1,735
RT906 0,836 1,027 1,261 1,54 RT7613 0,603 0,74 0,909 1,11 RTX11613B 1,118 1,373 1,687 2,06
RT906A 0,836 1,027 1,261 1,54 RTO7613 0,603 0,74 0,909 1,11 RT11615 0,836 1,027 1,261 1,54
RTF906 0,836 1,027 1,261 1,54 RT9509A 0,836 1,027 1,261 1,54 RTO11615 1,056 1,297 1,594 1,946
RTF906A 0,836 1,027 1,261 1,54 RT9509C 0,836 1,027 1,261 1,54 RTOX11708LL 1,126 1,383 1,7 2,075
RT909 0,836 1,027 1,261 1,54 RTF9509A 0,836 1,027 1,261 1,54 RTX11709B 0,942 1,157 1,421 1,735
RT909A 0,836 1,027 1,261 1,54 RTO9509A 1,126 1,383 1,7 2,075 RT11710B 0,836 1,027 1,261 1,54
RTF909 0,836 1,027 1,261 1,54 RTO9509B 0,942 1,157 1,421 1,735 RT11715 0,836 1,027 1,261 1,54
RTF909A 0,836 1,027 1,261 1,54 RTOF9509A 1,126 1,383 1,7 2,075 RTO11715 1,056 1,297 1,594 1,946
RTO909A 1,129 1,387 1,704 2,08 RTOF9509B 0,942 1,157 1,421 1,735 RT12509 0,836 1,027 1,261 1,54
RTO909B 1,129 1,387 1,704 2,08 MRTO9509A 1,126 1,383 1,7 2,075 RTF12509 0,836 1,027 1,261 1,54
RTOF909A 1,129 1,387 1,704 2,08 MRTO9509B 0,942 1,157 1,421 1,735 RTO12509 1,129 1,387 1,704 2,08
RTOF909B 1,129 1,387 1,704 2,08 RT9513 0,836 1,027 1,261 1,54 RTOF12509 1,129 1,387 1,704 2,08
RT910 0,836 1,027 1,261 1,54 RTF9513 0,836 1,027 1,261 1,54 RT12510 0,836 1,027 1,261 1,54
RTF910 0,836 1,027 1,261 1,54 RTO9513 0,836 1,027 1,261 1,54 RTO12510 1,061 1,303 1,6 1,954
RTO910 1,035 1,271 1,561 1,906 RTOF9513 0,836 1,027 1,261 1,54 RTF12510 0,836 1,027 1,261 1,54
RT913 0,836 1,027 1,261 1,54 MRT9513 0,836 1,027 1,261 1,54 RTOF12510 1,061 1,303 1,6 1,954
RTF913 0,836 1,027 1,261 1,54 MRTO9513 0,836 1,027 1,261 1,54 RT12513 0,836 1,027 1,261 1,54
RTO913 0,836 1,027 1,261 1,54 RTOO9513 0,942 1,157 1,421 1,735 RTO12513 0,836 1,027 1,261 1,54
RTO913A 0,836 1,027 1,261 1,54 RT11509 0,836 1,027 1,261 1,54 RT12515 0,836 1,027 1,261 1,54
RTOF913 0,836 1,027 1,261 1,54 RTO11509 1,126 1,383 1,7 2,075 RTF12515 0,836 1,027 1,261 1,54
RT915 0,836 1,027 1,261 1,54 RT11608 0,686 0,843 1,035 1,264 RTO12515 0,836 1,027 1,261 1,54
RTF915 0,836 1,027 1,261 1,54 RTO11608LL 1,118 1,373 1,687 2,06 RT12609A 0,836 1,027 1,261 1,54
RTO915 1,035 1,271 1,561 1,906 RT11609A 0,836 1,027 1,261 1,54 RTO12609A 1,126 1,383 1,7 2,075
T955GL 0,836 1,027 1,261 1,54 RTF11609A 0,836 1,027 1,261 1,54 RTO12609B 0,942 1,157 1,421 1,735
RT958LL 1,129 1,387 1,704 2,08 RTO11609A 1,118 1,373 1,687 2,06 RT12610 0,836 1,027 1,261 1,54
RTO958LL 1,129 1,387 1,704 2,08 RTO11609B 0,942 1,157 1,421 1,735 RT12710B 0,836 1,027 1,261 1,54
RT1110 0,836 1,027 1,261 1,54 RTX11609A 1,118 1,373 1,687 2,06 RTO12710B 1,118 1,373 1,687 2,06
RTO1110 1,061 1,303 1,6 1,954 RTOF11609A 1,118 1,373 1,687 2,06 RTX12710B 1,118 1,373 1,687 2,06
RTO1213 0,836 1,027 1,261 1,54 RTOF11609B 0,942 1,157 1,421 1,735 RT13710B 0,836 1,027 1,261 1,54
RTO1258LL 1,129 1,387 1,704 2,08 RTOX11609A 1,118 1,373 1,687 2,06 RT14608 0,686 0,843 1,035 1,264
TA4510 0,836 1,027 1,261 1,54 MRT11609 0,836 1,027 1,261 1,54 RTO14608LL 1,118 1,373 1,687 2,06
RTO6609 0,753 0,925 1,137 1,388 RT11610 0,836 1,027 1,261 1,54 RT14609A 0,836 1,027 1,261 1,54
RTX6609 0,754 0,926 1,138 1,389 RTO11610 1,056 1,297 1,594 1,946 RTF14609A 0,836 1,027 1,261 1,54
RTOX6609 0,753 0,925 1,137 1,388


GEARBOX

 INTERNAL RATIO

GEARBOX

 INTERNAL RATIO

GEARBOX

 INTERNAL RATIO
B 57% C 70% E 86% J 105% B 57% C 70% E 86% J 105% B 57% C 70% E 86% J 105%
RTO14609A 1,118 1,373 1,687 2,06 9 SPEEDS 11 SPEEDS
RTO14609B 0,942 1,157 1,421 1,735 RT-6609A 0,589 0,723 0,888 1,085 RTO-11909ALL 0,92 1,13 1,388 1,695
RTX14609A 1,118 1,373 1,687 2,06 RT-8608L 0,676 0,83 1,019 1,244 RTO-14909ALL 0,92 1,13 1,388 1,695
RTOF14609A 1,118 1,373 1,687 2,06 RTX-11609B 0,92 1,13 1,388 1,695 RTO-16909ALL 0,92 1,13 1,388 1,695
RTOF14609B 0,942 1,157 1,421 1,735 RTX-12609B 0,92 1,13 1,388 1,695 13 SPEEDS
RTOX14609B 0,942 1,157 1,421 1,735 RTX-13609B 0,92 1,13 1,388 1,695 RTLO-12913A 0,92 1,13 1,388 1,695
RT14610 0,836 1,027 1,261 1,54 RTX-14609B 0,92 1,13 1,388 1,695 RTLO-14913A 0,92 1,13 1,388 1,695
RTO14610 1,056 1,297 1,594 1,946 RTX-16709B 0,92 1,13 1,388 1,695 RTLO-16913A 0,92 1,13 1,388 1,695
RT14613 0,836 1,027 1,261 1,54 RT-8709B 0,815 1,001 1,23 1,502 RTLO-18913A 0,92 1,13 1,388 1,695
RT14613B 0,836 1,027 1,261 1,54 RT-11709H 0,815 1,001 1,23 1,502 RTLO-20913A 0,92 1,13 1,388 1,695
RTF14613 0,836 1,027 1,261 1,54 RT-12709H 0,815 1,001 1,23 1,502 15 SPEEDS
RTLO14613B 0,836 1,027 1,261 1,54 RT-13709H 0,815 1,001 1,23 1,502 RT-14915 0,815 1,001 1,23 1,502
RTO14613 0,836 1,027 1,261 1,54 RT-14709H 0,815 1,001 1,23 1,502 RTO-14915 1,037 1,273 1,564 1,91
RTOF14613 0,836 1,027 1,261 1,54 RTOC-16909A 0,815 1,001 1,23 1,502 RTO-16915 1,037 1,273 1,564 1,91
RTOO14613 0,942 1,157 1,421 1,735 10 SPEEDS 18 SPEEDS
RTOOF14613 0,942 1,157 1,421 1,735 RT-8908LL 0,815 1,001 1,23 1,502 RTLO-14918B 0,92 1,13 1,388 1,695
RTOOX14613 0,942 1,157 1,421 1,753 RTO-11908LL 1,095 1,345 1,652 2,017 RTLO-16918B 0,92 1,13 1,388 1,695
RT14615 0,836 1,027 1,261 1,54 RTO-14908LL 1,095 1,345 1,652 2,017 RTLO-18918B 0,92 1,13 1,388 1,695
RTO14615 1,056 1,297 1,594 1,946 RTO-16908LL 1,095 1,345 1,652 2,017 RTLO-20918B 0,92 1,13 1,388 1,695
RTX14615 1,056 1,297 1,594 1,946 FR-9210B 0,757 0,93 1,142 1,395 RTLO-22918B 0,92 1,13 1,388 1,695
RTLOF14618A 0,836 1,027 1,261 1,54 FR-11210B 0,757 0,93 1,142 1,395
RTOX14708LL 1,126 1,383 1,7 2,075 FR-12210B 0,757 0,93 1,142 1,395
RT14710B 0,836 1,027 1,261 1,54 FR-13210B 0,757 0,93 1,142 1,395
RTO14710B 1,118 1,373 1,687 2,06 FR-14210B 0,757 0,93 1,142 1,395
RT14715 0,836 1,027 1,261 1,54 FR-15210B 0,757 0,93 1,142 1,395
RTO14715 1,056 1,297 1,594 1,946 FRO-11210B 1,013 1,244 1,529 1,867
RTX14715 1,056 1,297 1,594 1,946 FRO-12210B 1,013 1,244 1,529 1,867
RTLO14718B 0,942 1,157 1,421 1,735 FRO-13210B 1,013 1,244 1,529 1,867
RT15613 0,836 1,027 1,261 1,54 FRO-14210B 1,013 1,244 1,529 1,867
RT15613A 0,836 1,027 1,261 1,54 FRO-15210B 1,013 1,244 1,529 1,867
RT15613B 0,836 1,027 1,261 1,54 FRO-16210B 1,013 1,244 1,529 1,867
RTO15613 0,836 1,027 1,261 1,54 FRO-11210C 1,013 1,244 1,529 1,867
RTO15613A 0,836 1,027 1,261 1,54 FRO-12210C 0,978 1,202 1,476 1,802
RTO15613B 0,836 1,027 1,261 1,54 FRO-13210C 0,978 1,202 1,476 1,802
RT15615 0,942 1,157 1,421 1,735 FRO-14210C 0,978 1,202 1,476 1,802
RTO15615 0,836 1,027 1,261 1,54 FRO-15210C 0,978 1,202 1,476 1,802
RTO15618 0,836 1,027 1,261 1,54 FRO-16210C 0,978 1,202 1,476 1,802
RT15715 0,836 1,027 1,261 1,54 FRO-17210C 0,978 1,202 1,476 1,802
RTO15715 1,056 1,297 1,594 1,946 FRO-18210C 0,978 1,202 1,476 1,802
RTLO16618A 0,836 1,027 1,261 1,54
RTLO16718B 0,942 1,157 1,421 1,735
RTLO18718B 0,942 1,157 1,421 1,735
AtributoValor
Mounting Position Bottom
Sentido de giro de la bomba Anti Clockwise
Weight (Kg) 17
Note A Air connection, thread 1/4” BSP
Note B Rotation
Note C Passing contact switch. P/N 100070022
Note D Connector with 3m of cable P/N. 9026899
Note F Backlash check plug
Gearbox RTF-11609A, RTLO-14718B/B-T2, RTO-11609A, RTO-12710B, RTO-15618, RTO-9509B, RTOO-11613, RTX12609B, FR-12210B, FRO-16210C, RT-11709H, RT-14613B, RT-6613, RTF-11613, RTLO-14913A, RTO-11609B, RTO-14608LL, RTO-15715, RTO-9513, RTOO-14613, RTX12710B, FR-13210B, FRO-17210C, RT-11710B, RT-14615, RT-7613, RTF-12509, RTLO-14918B, RTO-11610, RTO-14609A, RTO-16908LL, RTO-958LL, RTOO-9513, RTX13609B, FR-14210B, FRO-18210C, RT-11715, RT-14709H, RT-8608L, RTF12510, RTLO-16618A, RTO-11613, RTO-14609B, RTO-16909ALL, RTOC-16909A, RTOOF-11613, RTX14609B, FR-15210B, MRT-11609, RT-12509, RT-14710B, RT-8709B, RTF-12515, RTLO-16718B/B-T2, RTO-11615, RTO-14610, RTO-16915, RTOF-11609A, RTOOF-14613, RTX14615, FR-9210B, MRT-9513, RT-12510, RT-14915, RT-8908LL, RTF-14609A, RTLO-16913A, RTO-11715, RTO-14613, RTO-609, RTOF-11609B, RTOOX-11613, RTX-14715, FRO-11210B, MRTO-9509A, RT-12513, RT-15613, RT-906, RTF-14613, RTLO-16918B, RTO-11908LL, RTO-14615, RTO-613, RTOF-11613, RTOOX-14613, RTX16709B, FRO-11210C, MRTO-9509B, RT-12515, RT-15613A, RT-906A, RTF-906, RTLO-18718B, RTO-11909ALL, RTO-14710B, RTO-6610, RTOF-12509, RTOX-11609A, RTX6609, FRO-12210B, MRTO-9513, RT-12610, RT-15613B, RT-909, RTF-906A, RTLO-18913A, RTO-1213, RTO-14715, RTO-6613, RTOF-12510, RTOX-11708LL, T-905G, FRO-12210C, RT-1110, RT-12709H, RT-15615, RT-909A, RTF-910, RTLO-18918B, RTO-12509, RTO-14908LL, RTO-7613, RTOF-14609A, RTOX-14609B, T-955GL, FRO-13210B, RT-11509, RT-12710B, RT-15715, RT-910, RTF-913, RTLO-20913A, RTO-12510, RTO-14909ALL, RTO-909A, RTOF-14609B, RTOX-14708LL, RTLO-22918B, FRO-13210C, RT-11608, RT-13709H, RT-509, RT913, RTF-915, RTLO-20918B, RTO-12513, RTO-14915, RTO909B, RTOF-14613, RTOX-6609, TA-4510, FRO-14210B, RT-11609A, RT-13710B, RT-510, RT-915, RTF-9509A, RTLOF14618A, RTO-12515, RTO-15613, RTO-910, RTOF-913, RTX11609A, TA-7610, FRO-14210C, RT-11610, RT-14608, RT-609, RT-9509A, RTF-9513, RTO-1110, RTO-1258LL, RTO-15613A, RTO-913, RTOF-9509A, RTX11609B, RT-14715, FRO-15210B, RT-11613, RT-14609A, RT-613, RT-9509C, RTLO-12913A, RTO-11509, RTO-12609A, RTO-15613B, RTO-913A, RTOF-9509B, RTX11613B, FRO-15210C, RT-11613C, RT-14610, RT-6609A, RT-9513, RTLO-14613B, RTO-11608LL, RTO-12609B, RTO-15615, RTO-9509A, RTOF-9513, RTX11709B, FR-11210B, FRO-16210B, RT-11615, RT-14613, RT-6610, RT-958LL
Output type Pump (DIN 5462), Flange
Internal ratio C (70%), E (86%), J (105%), B (57%)
