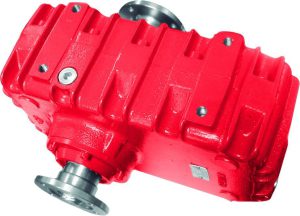

Caja multiplicadora coaxial de alta potencia disponible en diferentes relaciones internas. Mismo sentido de giro a la entrada y a la salida.
| SKU | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 600699 | 1: 1.49 | 59.00 | 410.00 | 316.00 | 264.00 |
| 604599 | 1: 1.86 | 59.00 | 410.00 | 316.00 | 264.00 |
| 6011199 | 1: 2 | 59.00 | 410.00 | 316.00 | 264.00 |
| 604199 | 1: 2.50 | 59.00 | 410.00 | 316.00 | 264.00 |
| 600899 | 1: 3.91 | 59.00 | 410.00 | 316.00 | 264.00 |
| 600999 | 1: 4.59 | 59.00 | 410.00 | 316.00 | 264.00 |
| 607999 | 1: 6.54 | 59.00 | 410.00 | 316.00 | 264.00 |
Caja multiplicadora coaxial de alta potencia disponible en diferentes relaciones internas. Mismo sentido de giro a la entrada y a la salida.
| Atributo | Valor |
|---|---|
| Max. power continuous | 130 C.V. // 97 Kw |
| Net weight (kg) | 59 |
| Rotation input - output | Igual |
| Oil type: | SAE 80W 90 |
| Internal ratio | 1: 1.49, 1: 1.86, 1: 2, 1: 2.50, 1: 3.91, 1: 4.59, 1: 6.54 |
