07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

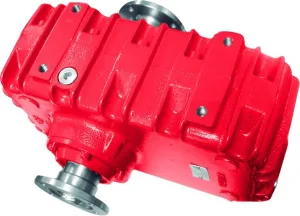

High power coaxial gear up box with different internal ratios available. Input & Output rotations are the same. Technical Datasheet
| SKU | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 600699 | 1: 1.49 | 59.00 | 410.00 | 316.00 | 264.00 |
| 604599 | 1: 1.86 | 59.00 | 410.00 | 316.00 | 264.00 |
| 6011199 | 1: 2 | 59.00 | 410.00 | 316.00 | 264.00 |
| 604199 | 1: 2.50 | 59.00 | 410.00 | 316.00 | 264.00 |
| 600899 | 1: 3.91 | 59.00 | 410.00 | 316.00 | 264.00 |
| 600999 | 1: 4.59 | 59.00 | 410.00 | 316.00 | 264.00 |
| 607999 | 1: 6.54 | 59.00 | 410.00 | 316.00 | 264.00 |
High power coaxial gear up box with different internal ratios available. Input & Output rotations are the same.
| Atributo | Valor |
|---|---|
| Max. power continuous | 130 C.V. // 97 Kw |
| Net weight (kg) | 59 |
| Rotation input - output | Equal |
| Oil type: | SAE 80W 90 |
| Internal ratio | 1: 1.49, 1: 1.86, 1: 2, 1: 2.50, 1: 3.91, 1: 4.59, 1: 6.54 |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
