Technical specifications AC DC Work Pressure 315 bar Max. Counter pressure 160 bar 210 bar Weight (Kg.) 2 Solenoids 4,9 6 1 Solenoid 3,5 4,3 Maximum cicles/minutes 120 250 Protection IP 69K IP 65 T coil Max. 180ºC (Class H) 135ºC (Class B) AC DC V 110 120 220 240 12 24 Hz 50 60 […]
| Atributo | Valor |
|---|---|
| Working Temp | 5ºC - 60ºC |
| Oil viscosity | 15 - 300 cst |
| Filtering | 25 micras |

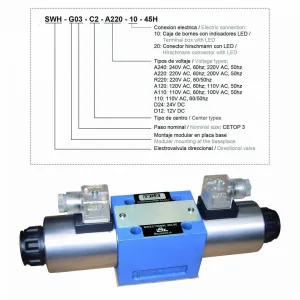

| Center type | C3B, C4, C40B, C40, C4B, C5, C5B, C6, C6B, C2BS, C3BS, C4BS, C40BS, C5BS, C6BS, B2, B3, B20, C2, C2B, C3 |
| Voltage type | A120: 120V AC, 60hz; 110V AC, 50hz, D24: 24V DC, D12: 12V DC, A240: 240V AC, 60hz; 220V AC, 50hz |
| Electric connection | 20: Hirschmann connector with LED, 10: Terminal box with LED |
