07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

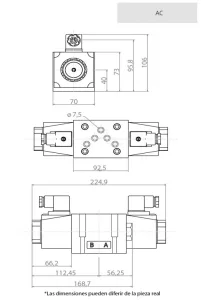

Technical specifications AC DC Work Pressure 315 bar Max. Counter pressure 160 bar 210 bar Weight (Kg.) 2 Solenoids 4,9 6 1 Solenoid 3,5 4,3 Maximum cicles/minutes 120 250 Protection IP 69K IP 65 T coil Max. 180ºC (Class H) 135ºC (Class B) AC DC V 110 120 220 240 12 24 Hz 50 60 […]
| Atributo | Valor |
|---|---|
| Working Temp | 5ºC - 60ºC |
| Oil viscosity | 15 - 300 cst |
| Filtering | 25 micras |
| Center type | C4B, C5, C5B, C6, C6B, C9B, C2BS, C10B, C3BS, C11B, C4BS, C12B, C40BS, C9BS, C5BS, C10BS, C6BS, C11BS, B2, C12BS, B3, C9, B20, C11, C2, C12, C2B, C3, D2, C3B, C4, C40B, C40 |
| Voltage type | D12: 12V DC, R220: 220V AC, 60/50hz, A110: 110V AC, 60hz; 100V AC, 50hz, 110: 110V AC, 60/50hz, A220: 220V AC, 60hz; 200V AC, 50hz, A240: 240V AC, 60hz; 220V AC, 50hz, A120: 120V AC, 60hz; 110V AC, 50hz, D24: 24V DC |
| Electric connection | 10: Terminal box with LED, 20: Hirschmann connector with LED |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
