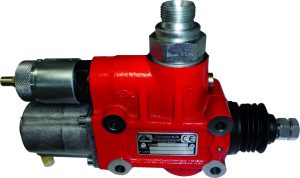

Válvula para volquete de centro abierto proporcional, 150 litros. Válvula limitadora con selector para dos rangos de presión.
| SKU | Type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 9048790/2 | 2 Presiones | 7.50 | 270.00 | 68.00 | 155.00 |
| 9072790 | 2 2 Presiones neumaticas | 7.50 | 270.00 | 68.00 | 155.00 |
| 9048890/2 | 3 2 Presiones | 7.50 | 270.00 | 68.00 | 155.00 |
Válvula para volquete de centro abierto proporcional, 150 litros. Válvula limitadora con selector para dos rangos de presión.
| Atributo | Valor |
|---|---|
| Max. Flow | 150 L |
| Max. pressure setting (bar) | 400 bar |
| Pressure rise per turn | 70÷80 bar |
| Working temperatures normal | +60ºC ÷ +70ºC |
| Working temperatures extreme | -40ºC ÷ +100ºC |
| Air Pressure For Good Operation | 8 bar |
| OPTIONAL: Max.torque wrench for base plate screws | 20 Nm. Código: 9043690 |
| Type | 2 Presiones, 2 2 Presiones neumaticas, 3 2 Presiones |
