07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
150 litres proportional open circuit tipping valve. Relief valve with manual selector to choose between two pressure ranges.
| SKU | Type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 9048790/2 | 2 pressures | 7.50 | 270.00 | 68.00 | 155.00 |
| 9072790 | 2 pneumatic pressure | 7.50 | 270.00 | 68.00 | 155.00 |
| 9048890/2 | 3 pressures | 7.50 | 270.00 | 68.00 | 155.00 |

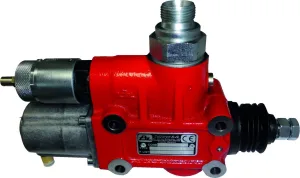

150 litres proportional open circuit tipping valve. Relief valve with manual selector to choose between two pressure ranges.
| Atributo | Valor |
|---|---|
| Max. Flow | 150 L |
| Max. pressure setting (bar) | 400 bar |
| Pressure rise per turn | 70÷80 bar |
| Working temperatures normal | +60ºC ÷ +70ºC |
| Working temperatures extreme | -40ºC ÷ +100ºC |
| Air Pressure For Good Operation | 8 bar |
| OPTIONAL: Max.torque wrench for base plate screws | 20 Nm. P/N: 9043690 |
| Type | 2 pressures, 2 pneumatic pressure, 3 pressures |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
