039502 Side Mount-Pneumatic
NISSAN

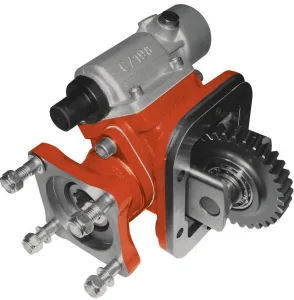

Power Take-off one gear, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on left side of the G...
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum shifting, mounting on left side of the Gearbox. Kit vacuum Single acting 12V. 9027899 Note A Engage PTO, thread 1/8” BSP Note B Rotation Note C Passing contact swith. P/N 100070001 Note D Connector with 3m. of cable P/N 9026899 Note E […]
| SKU | Shifting | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 036403 | Mechanical | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 8,9 |
| Engine to PTO ratio | 1: 0,95 |
| Gearbox | MES 50B, MES 50C-5.099 |
| Shifting | Mechanical, Vacuum |
