093403 Rear Pneumatic (1:1.32)
SCANIA
Power Take-off two gears, to connect Iso 4 bolts pumps. Pneumatic shifting, exclusive for use on vehicles equipped with ...

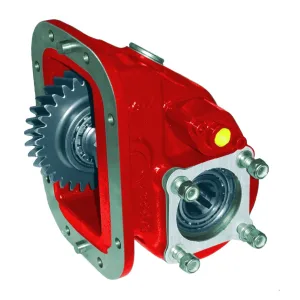

Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right side of the Gearbox. Optional: Passing contact switch. High Normal Engine to PTO ratio GR 801 1: 1,36 GR 900, GRH 900 1: 1,18 GRS 890, GRS 900, GRS 920 1: 1,688 1: 1,38
| SKU | Type | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 092303 | - | Pump (DIN 5462) | - | - | - | - |
| 092302 | - | Flange | - | - | - | - |
| 092403 | - | Pump (DIN 5462) | - | - | - | - |
| 092402 | - | Flange | - | - | - | - |
| 092503 | - | Pump (DIN 5462) | - | - | - | - |
| 092502 | - | Flange | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 18,2 |
| Gearbox | GR-801, GR-900, GRH-900, GRS-890, GRS-900, GRS-920 |
| Note A | Engage PTO, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch P/N 100070028 |
| Note D | Connector with 3m. of cable P/N 9026899 |
| Note E | Backlash Check Plug |
| Type | GR 801, GR 900, GRH 900, GRS 890, GRS 900, GRS 920 |
| Output type | Flange, Pump (DIN 5462) |
