093403 Rear Pneumatic (1:1.32)
SCANIA

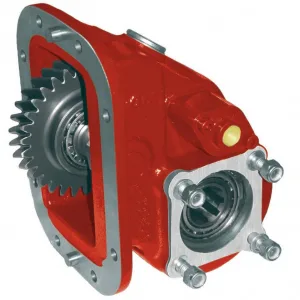

Power Take-off two gears, to connect Iso 4 bolts pumps. Pneumatic shifting, exclusive for use on vehicles equipped with ...
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right side of the Gearbox. Optional: Passing contact switch. High Normal Engine to PTO ratio 1: 1,56 1: 1,26 Note A Engage PTO, thread 1/4” BSP Note B Rotation Note C Passing contact switch. P/N 100070001 Note D Connector […]
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 093003 | Pump (DIN 5462) | - | - | - | - |
| 093002 | Flange | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 400 |
| Intermittent Torque (Nm) | 560 |
| Power (1000 r.p.m.) | 57 C.V // 43 KW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 18 |
| Gearbox | GRSO-900 |
| Output type | Flange, Pump (DIN 5462) |
