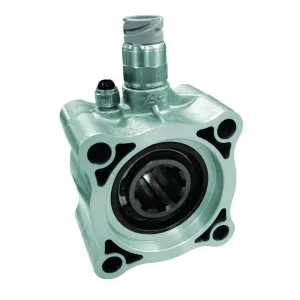

07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Power Take-off central piston, ratio 1:1 mounting on rear 4 holes-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. Optional: Passing contact switch.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 1213403 | Pump (DIN 5462) | - | - | - | - |
| 1213402 | Flange | - | - | - | - |
Power Take-off central piston, ratio 1:1 mounting on rear 4 holes-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Max. torque (Nm) | 590 |
| Power (1000 r.p.m.) | 84 CV // 63 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 6 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Pressure switch P/N (100070018) |
| Note D | Passing contact switch (9024999) |
| Gearbox | 4106DT-7.54, 4106DT-9.03, 4106OD-6.08, FS-5206A, FS-5206B, FSO-5206B, FS-6406AE |
| Output type | Flange, Pump (DIN 5462) |
