034503 SIDE MOUNT PNEUMATIC
CLARK
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right side of the...

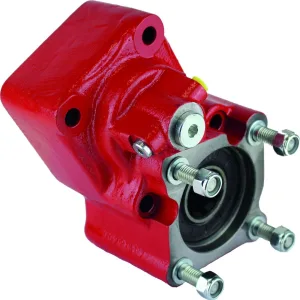

Heavy Duty, rear PTO with ISO 4 bolts rotated output. Pneumatic shifting. Optional bayonet or pressure switch. Engine to PTO ratio Gearbox Ratio 1: 1.8 1: 1.5 1: 1.3 6109DT, FS6209A, FS6309A, FS8209A, FS8309A,ES11109, ES11209 1:1,377 1: 1,1475 1: 0,9945 6109OD, FSO6209A, FSO6309A, FSO8209A, FSO8309A, ESO12109, ES12209 1: 1,8432 […]
| SKU | Output type | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 1219002 | Flange | 1: 1.8 | - | - | - | - |
| 1219902 | Flange | 1:1.5 | - | - | - | - |
| 1219802 | Flange | 1:1.3 | - | - | - | - |
| 1219003 | Compact | 1: 1.8 | - | - | - | - |
| 1219903 | Compact | 1:1.5 | - | - | - | - |
| 1219803 | Compact | 1:1.3 | - | - | - | - |
Heavy Duty, rear PTO with ISO 4 bolts rotated output. Pneumatic shifting. Optional bayonet or pressure switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 350 (1: 1.8), 400 (1: 1.5), 450 (1: 1.3 and 1: 1.04) |
| Intermittent Torque (Nm) | 490 (1: 1.8), 560 (1: 1.5), 630 (1: 1.3 and 1: 1..04) |
| Power (HP) 1500 r.p.m | 75 C.V. // 56 Kw (1: 1.8), 85 C.V. // 64 Kw (1:1.5), 96 C.V. // 72 Kw (1:1.3 and 1:1.04) |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 11,45 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Drain plug |
| Note D | Passing contact switch (9024999) |
| Note E | Pressure switch. P/N 100070018 |
| Gearbox | 6109-DT, ES-11109, FS-8209A, FSO-8209A, FSO-6209A, FSO-6309A, FSO-8309A, ESO-12109, ES-12209, 6109-OD, FS-8309A, FS-6209A, FS-6309A, ES-11209 |
| Output type | Flange, Compact |
| Internal ratio | 1: 1.8, 1:1.5, 1:1.3 |
