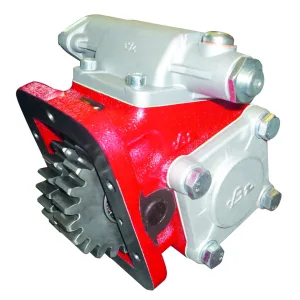

130803 SIDE MOUNT PNEUMATIC
KAMAZ
Power Take-off two gears, constant mesh to connect Iso 4 bolts pumps. Pneumatic shifting. Mounting on right side of the ...
Power Take-off two gears, constant mesh to connect Iso 4 bolts pumps. Pneumatic shifting. Mounting on right side of the Gearbox. Internal ratio R (137%) S (150%) T (165%) Engine to PTO ratio Normal 1:0,615 1:0,673 1:0,741 High 1:0,756 1:0,827 1:0,910
| SKU | Output type | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 130902R | Flange | R (137%) | - | - | - | - |
| 130902S | Flange | S (150%) | - | - | - | - |
| 130902T | Flange | T (165%) | - | - | - | - |
| 130903R | Pump (DIN 5462) | R (137%) | 12.00 | 197.00 | 176.00 | 162.00 |
| 130903S | Pump (DIN 5462) | S (150%) | 12.00 | 197.00 | 176.00 | 162.00 |
| 130903T | Pump (DIN 5462) | T (165%) | 12.00 | 197.00 | 176.00 | 162.00 |
Power Take-off two gears, constant mesh to connect Iso 4 bolts pumps. Pneumatic shifting. Mounting on right side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Right |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 12 |
| Working temperature | -45ºC + 120ºC |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Gearbox | MODEL 14, MODEL 15 |
| Output type | Flange, Pump (DIN 5462) |
| Internal ratio | R (137%), S (150%), T (165%) |
