210303 SIDE MOUNT PNEUMATIC
MACK

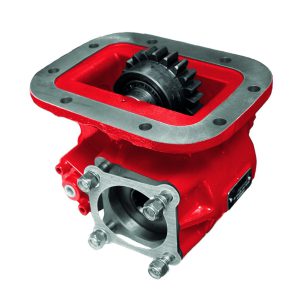

Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on left eight bolts-w...
Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on left eight bolts-window of the Gearbox.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 210502 | Flange | - | - | - | - |
| 210503 | Pump (DIN 5462) | 17.00 | 235.00 | 196.00 | 190.00 |
Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on left eight bolts-window of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 460 |
| Intermittent Torque (Nm) | 635 |
| Power (1000 r.p.m.) | 65 C.V // 48 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 17 |
| Engine to PTO ratio | 1: 1,5 |
| Gearbox | T-2090, T-2180 |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Backlash Check Plug |
| Note F | Oil drain plug |
| Output type | Flange, Pump (DIN 5462) |
