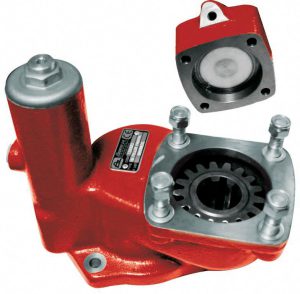

301403 Rear Pneumatic Heavy Duty
SHAANXI
Heavy Duty Power Take-off two gears, rear mounting. Pneumatic shifting, includes auxiliary piston that assures the PTO i...
Power Take-off two gears, rear mounting. Pneumatic shifting, includes auxiliary piston that assures the PTO is running with low range speeds of gearbox. Note A Air connection, thread 1/4” BSP Note B Rotation Note C Auxiliary piston Note D Air Connection, thread BSP 1/8”
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 301303 | Pump (DIN 5462) | - | - | - | - |
| 301302 | Flange | - | - | - | - |
Power Take-off two gears, rear mounting. Pneumatic shifting, includes auxiliary piston that assures the PTO is running with low range speeds of gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 12 |
| Gearbox | 9JS |
| Output type | Pump (DIN 5462), Flange |
