REAR PUMP ADAPTER FIXING
ALLISON
Complement to securely fix the rear pump and adapter. Must be fitted with 3131 PTO special RP output and with rear pump ...

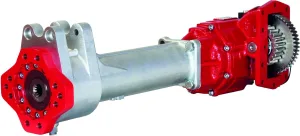

Hot shift Power Take-off, 2 gears, with prolongated shaft for rear pump. Hydraulic shifting and internal lubrication. Mounting on both sides of Gearbox. Wide range of internal ratios. Internal Ratio B (50%) C (58%) E (68%) G (78%) J (84%) M (97%) O (119%) Continuous Service (1000 r.p.m.) Torque (Nm) 500 500 450 420 400 […]
| SKU | Internal ratio | Shifter type | Assembly arrangements | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|---|
| 331PBE631RP | B (50%) | E (Electric 12V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PBE633RP | B (50%) | E (Electric 12V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PBF631RP | B (50%) | F (Electric 24V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PBF633RP | B (50%) | F (Electric 24V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PCE631RP | C (58%) | E (Electric 12V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PCE633RP | C (58%) | E (Electric 12V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PCF631RP | C (58%) | F (Electric 24V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PCF633RP | C (58%) | F (Electric 24V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PEE631RP | E (68%) | E (Electric 12V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PEE633RP | E (68%) | E (Electric 12V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PEF631RP | E (68%) | F (Electric 24V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PEF633RP | E (68%) | F (Electric 24V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PGE631RP | G (78%) | E (Electric 12V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PGE633RP | G (78%) | E (Electric 12V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PGF631RP | G (78%) | F (Electric 24V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PGF633RP | G (78%) | F (Electric 24V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PJE631RP | J (84%) | E (Electric 12V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PJE633RP | J (84%) | E (Electric 12V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PJF631RP | J (84%) | F (Electric 24V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PJF633RP | J (84%) | F (Electric 24V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PME631RP | M (97%) | E (Electric 12V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PME633RP | M (97%) | E (Electric 12V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PMF631RP | M (97%) | F (Electric 24V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331PMF633RP | M (97%) | F (Electric 24V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331POE631RP | O (119%) | E (Electric 12V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331POE633RP | O (119%) | E (Electric 12V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
| 331POF631RP | O (119%) | F (Electric 24V. over hydraulic) | 1 Right, Forward | - | 562.10 | 201.80 | 207.80 |
| 331POF633RP | O (119%) | F (Electric 24V. over hydraulic) | 3 Left, Forward | - | 562.10 | 201.80 | 207.80 |
Hot shift Power Take-off, 2 gears, with prolongated shaft for rear pump. Hydraulic shifting and internal lubrication. Mounting on both sides of Gearbox. Wide range of internal ratios.
| Atributo | Valor |
|---|---|
| Mounting Position | Right, Bottom, Top |
| Weight (Kg) | 29 |
| Note A | Backlash check plug |
| Note B | Pump Rotation |
| Note C | Backlash check plug |
| Note D | Pressure switch |
| Note E | Shifting hose |
| Important: | Rear pump adapter and bracket must be ordered separately. |
| Series: | 3131 Allison 10 bolts |
| Versions | P Greaseable Idler shaft |
| Output type | RP Rear Pump |
| Input Gear | 63 Allison |
| Gearbox | MD-3500, MD-3560P, MD-3560PR, HD-4000, HD-4060P, HD-4500, HD-4560P, HD-4560PR, HD-4700, HD-4800, MD-3000, MD-3060P, MD-3060PR, MD-3066, MD-3070PT, MD-3200 |
| Internal ratio | B (50%), C (58%), E (68%), G (78%), J (84%), M (97%), O (119%) |
| Shifter type | E (Electric 12V. over hydraulic), F (Electric 24V. over hydraulic) |
| Assembly arrangements | 1 Right, Forward, 3 Left, Forward |
