07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

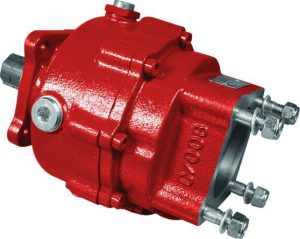

Adapter kit with disc clutch that allow the pump’s connection with the vehicle in motion. Available with pump and plate output. This adapter kit can operate ISO 4 bolts pumps when the vehicle is running. Clutch Adapter Air Pressure (Kg/cm2) 5 6 7 Intermittent torque (Nm) 200 300 400 Power @ 1000 r.p.m. 28 C.V. […]
| SKU | Combinations | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 706504 | pump´s output (DIN 5462) | 15.00 | 160.00 | 256.00 | 160.00 |
| 7010404 | flange´s output (DIN 5462) | 15.00 | 160.00 | 300.00 | 160.00 |
| 708704 | flange’s input and output | 15.00 | 160.00 | 300.00 | 160.00 |
Adapter kit with disc clutch that allow the pump’s connection with the vehicle in motion. Available with pump and plate output. This adapter kit can operate ISO 4 bolts pumps when the vehicle is running.
| Atributo | Valor |
|---|---|
| Weight (Kg) | 15 |
| Ratio | 1:1 |
| Maximum speed under pressure | 2000 r.p.m. |
| Type of oil (Viscosity): | Hydraulic Oil. 80W-90 |
| Oil quantity: | 0.25 L |
| Note A | Air connection, thread M12x1.5 |
| Note B | Expansion kit |
| Note C | Oil level plug |
| Note D | Oil drain pipe |
| Note E | Drive flange. DIN 100/SAE 1310 |
| Combinations | pump´s output (DIN 5462), flange´s output (DIN 5462), flange’s input and output |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
