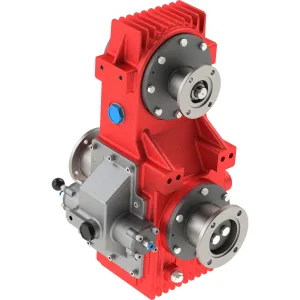

07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Made of high strength aluminum alloy making the PTO lighter yet durable, which makes mounting / maintenance job much easier.
SG Iron casing available as optional.
Flanges to suit any vehicle are available.
Excellent interchangeability of all components.
| SKU | Ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 6018699 | 1:1.48 | - | - | - | - |
| 6018799 | 1:1.17 | - | - | - | - |
| 6018899 | 1:1.31 | - | - | - | - |
| 6018999 | 1:1.62 | - | - | - | - |
Made of high strength aluminum alloy making the PTO lighter yet durable, which makes mounting / maintenance job much easier.
SG Iron casing available as optional.
Flanges to suit any vehicle are available.
Excellent interchangeability of all components.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 20000 |
| Intermittent Torque (Nm) | 25000 |
| Max. Continuous Output Torque (Nm) | 1000 |
| Max. Intermittent Output Torque (Nm) | 1250 |
| Rotation PTO | Same as engine |
| Output type | Pneumatic, Manual for Emergency |
| PTO operational with vehicle | Stationary |
| Ratio | 1:1.48, 1:1.17, 1:1.31, 1:1.62 |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
