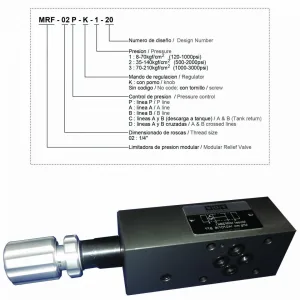

MRF 02 Modular relief valve

Variantes

SKU	Pressure control	Regulator	Pressure adjusting range	Peso (kg)	A (cm)	B (cm)	C (cm)
MRF-02P-K-1-20	-	K: with knob	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02P-K-2-20	-	K: with knob	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02P-K-3-20	-	K: with knob	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02P-1-20	-	With adjusting screw	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02P-2-20	-	With adjusting screw	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02P-3-20	-	With adjusting screw	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02A-K-1-20	-	K: with knob	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02A-K-2-20	-	K: with knob	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02A-K-3-20	-	K: with knob	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02A-1-20	-	With adjusting screw	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02A-2-20	-	With adjusting screw	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02A-3-20	-	With adjusting screw	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02B-K-1-20	-	K: with knob	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02B-K-2-20	-	K: with knob	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02B-K-3-20	-	K: with knob	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02B-1-20	-	With adjusting screw	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02B-2-20	-	With adjusting screw	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02B-3-20	-	With adjusting screw	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02C-K-1-20	-	K: with knob	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02C-K-2-20	-	K: with knob	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02C-K-3-20	-	K: with knob	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02C-1-20	-	With adjusting screw	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02C-2-20	-	With adjusting screw	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02C-3-20	-	With adjusting screw	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02D-K-1-20	-	K: with knob	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02D-K-2-20	-	K: with knob	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02D-K-3-20	-	K: with knob	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-
MRF-02D-1-20	-	With adjusting screw	1: 8-70kgf/cm2 (120-1000psi)	-	-	-	-
MRF-02D-2-20	-	With adjusting screw	2: 35-140kgf/cm2 (500-2000psi)	-	-	-	-
MRF-02D-3-20	-	With adjusting screw	3: 70-210kgf/cm2 (1000-3000psi)	-	-	-	-

MRF-02P-K-1-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02P-K-2-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02P-K-3-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02P-1-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02P-2-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02P-3-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02A-K-1-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02A-K-2-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02A-K-3-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02A-1-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02A-2-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02A-3-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02B-K-1-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02B-K-2-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02B-K-3-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02B-1-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02B-2-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02B-3-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02C-K-1-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02C-K-2-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02C-K-3-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02C-1-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02C-2-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02C-3-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02D-K-1-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02D-K-2-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02D-K-3-20

Pressure control: -

Regulator: K: with knob

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02D-1-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02D-2-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MRF-02D-3-20

Pressure control: -

Regulator: With adjusting screw

Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

Atributo	Valor
Maximum working pressure	250 kgf/cm³
Max. Flow	50LPM (13,1 GPM)
Oil viscosity	35 cst (175 ssu)
Working temperature	50º c ( 122º f )
Pressure control	P line, A line, B line, A & B lines (Tank return), A & B crossed lines
Regulator	K: with knob, With adjusting screw
Pressure adjusting range	1: 8-70kgf/cm2 (120-1000psi), 2: 35-140kgf/cm2 (500-2000psi), 3: 70-210kgf/cm2 (1000-3000psi)

Atributo

Valor

Maximum working pressure

250 kgf/cm³

Max. Flow

50LPM (13,1 GPM)

Oil viscosity

35 cst (175 ssu)

Working temperature

50º c ( 122º f )

Pressure control

P line, A line, B line, A & B lines (Tank return), A & B crossed lines
