179703 Side Mount Vacuum Single Acting
MITSUBISHI

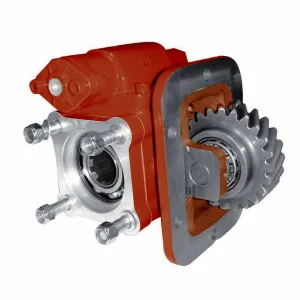

Power Take-off two gears constant mesh, to connect ISO 4 bolts pumps. Vacuum mechanical and pneumatic shifting. Mounting...
Power Take-off two gears constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on left side of the Gearbox. Optional: Passing contact switch. Note A Air connection, thread 1/4” BSP Note B ROTATION Note c Passing contact switch. P/N 100070003
| SKU | Shifting | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 1710303 | Mechanical | Pump (DIN 5462) | - | - | - | - |
| 1710303 | Pneumatic | Pump (DIN 5462) | - | - | - | - |
| 1710402 | Mechanical | Flange | - | - | - | - |
| 1710302 | Pneumatic | Flange | - | - | - | - |
Power Take-off two gears constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on left side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 250 |
| Intermittent Torque (Nm) | 350 |
| Power (1000 r.p.m.) | 35 C.V // 27 kW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 11 |
| Engine to PTO ratio | 1: 0,865 |
| Gearbox | M060S6-OD-6.748-0.731 |
| Shifting | Pneumatic, Mechanical |
| Output type | Flange, Pump (DIN 5462) |
