199303 SIDE MOUNT VACUUM- SINGLE ACTING (EASY ENGAGEMENT)
ISUZU
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting...

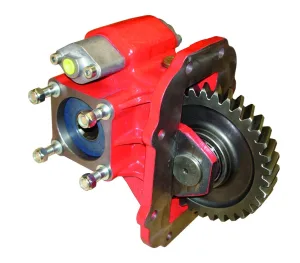

Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on both sides of the Gearbox. Optional: Passing contact switch.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 198102 | Flange | 19.30 | 272.00 | 184.00 | - |
| 198103 | Pump (DIN 5462) | 19.30 | 272.00 | 184.00 | - |
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on both sides of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 350 |
| Intermittent Torque (Nm) | 490 |
| Power (1000 r.p.m.) | 50 C.V // 37 kW |
| Mounting Position | Right, Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 19.3 |
| Engine to PTO ratio | 1: 1,21 |
| Note A | Engage PTO, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m. of cable P/N 9026899 |
| Note E | Backlash check plug |
| Gearbox | MJT-7S |
| Output type | Flange, Pump (DIN 5462) |
