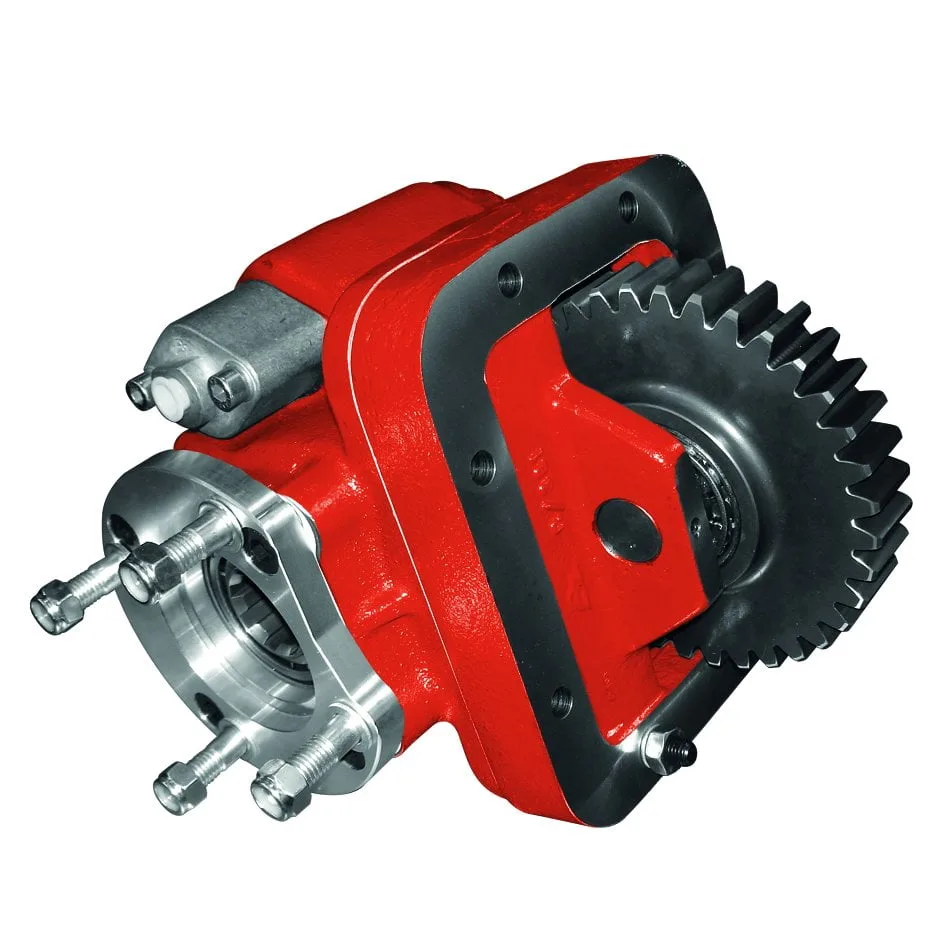

198303 SIDE MOUNT PNEUMATIC – 3 GEARS
ISUZU
Power Take-off three gears, constant mesh to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on left side of the...

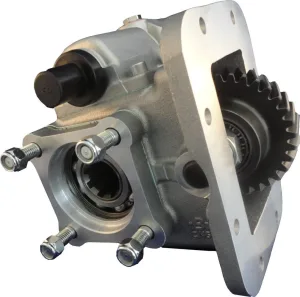

Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting, mounting on left side of the Gearbox. Engine to PTO ratio Gearbox Ratio MZZ 6F 1:0,94 MZZ 6U, MZZ 5D, MZZ 6W, MZZ 6C 1:0,92
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 199702 | Flange | Mechanical Shifting | 14.00 | 210.00 | 177.00 | 172.00 |
| 199602 | Flange | Pneumatic shifting | 14.00 | 210.00 | 177.00 | 172.00 |
| 199302 | Flange | Vacuum Shifting | 14.00 | 210.00 | 177.00 | 172.00 |
| 199703 | Pump (DIN 5462) | Mechanical Shifting | 14.00 | 210.00 | 177.00 | 172.00 |
| 199603 | Pump (DIN 5462) | Pneumatic shifting | 14.00 | 210.00 | 177.00 | 172.00 |
| 199303 | Pump (DIN 5462) | Vacuum Shifting | 14.00 | 210.00 | 177.00 | 172.00 |
Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 250 |
| Intermittent Torque (Nm) | 350 |
| Power (1000 r.p.m.) | 36 C.V // 27 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 14 |
| Note A | Engage PTO, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Mechanical Shifting |
| Note F | Passing contact switch P/N. 100070028 |
| Note G | Air connection,thread BSP 1/4" |
| Gearbox | MZZ-6U, MZZ-6W, MZZ-5D, MZZ-6C, MZZ-6F |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
