271703 PTO side mount, 6 bolts, 2 gear constant mesh, vacuum shifting single acting
HYUNDAI
PTO HYUNDAI M3S5 OD, SIDE M. VACUUM S/A. 6 BOLTS Continuous Torque (Nm): 150 Intermittent Torque (Nm): 210 Max. Power (k...

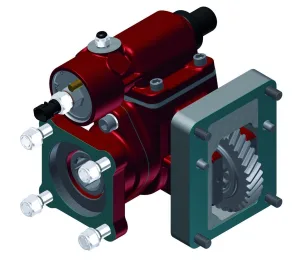

Power Take-off two gears, ISO output. Left side mounting on 4bolts-window of the Gearbox. Optional: passing contact switch.
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 271402 | Flange | Mechanical Shifting | - | - | - | - |
| 271302 | Flange | Vacuum Shifting | - | - | - | - |
| 271403 | Pump (ISO) | Mechanical Shifting | 10.00 | 203.00 | - | 166.00 |
| 271303 | Pump (ISO) | Vacuum Shifting | 10.00 | 203.00 | - | 166.00 |
Power Take-off two gears, ISO output. Left side mounting on 4bolts-window of the Gearbox. Optional: passing contact switch.
| Atributo | Valor |
|---|---|
| Max. torque (Nm) | 182 |
| Power (1000 r.p.m.) | 25 C.V // 19 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 10 |
| Engine to PTO ratio | 1: 1,15 |
| Note A | Rotation |
| Note B | PTO Connection. BSP 1/4” |
| Note C | Passing contact switch. P/N. 100070017 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Mechanical Shifting |
| Note F | Passing contact switch. P/N. 100070012 |
| Note G | Connector with 3m of cable P/N. 906599 |
| Gearbox | HD-45 |
| Output type | Flange, Pump (ISO) |
| Shifter type | Vacuum Shifting, Mechanical Shifting |
