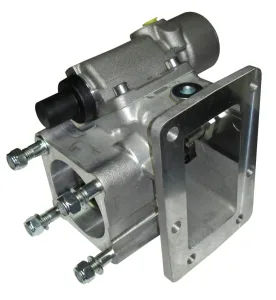

271303 SIDE MOUNT VACUUM
HYUNDAI
Power Take-off two gears, ISO output. Left side mounting on 4bolts-window of the Gearbox. Optional: passing contact swit...
PTO HYUNDAI M3S5 OD, SIDE M. VACUUM S/A. 6 BOLTS Continuous Torque (Nm): 150 Intermittent Torque (Nm): 210 Max. Power (kW):16 Mounting Position: Izquierdo / Left Pump rotation: Derecho / Right Hand Mounting Kit: 8044633
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 271902 | Flange | Mechanical Shifting | - | - | - | - |
| 271802 | Flange | Pneumatic shifting | - | - | - | - |
| 271702 | Flange | Vacuum Shifting | - | - | - | - |
| 271903 | Pump (DIN 5462) | Mechanical Shifting | - | - | - | - |
| 271803 | Pump (DIN 5462) | Pneumatic shifting | - | - | - | - |
| 271703 | Pump (DIN 5462) | Vacuum Shifting | - | - | - | - |
PTO HYUNDAI M3S5 OD, SIDE M. VACUUM S/A. 6 BOLTS Continuous Torque (Nm): 150 Intermittent Torque (Nm): 210 Max. Power (kW):16 Mounting Position: Izquierdo / Left Pump rotation: Derecho / Right Hand Mounting Kit: 8044633
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 150 |
| Intermittent Torque (Nm) | 210 |
| Max. Power (kW) | 16 |
| Mounting Position | Left |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 6 |
| Engine to PTO ratio | 1: 0,5 |
| Gearbox | M3-S5 (Iron Casting) |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
