REAR PUMP ADAPTER FIXING
ALLISON
Complement to securely fix the rear pump and adapter. Must be fitted with 3131 PTO special RP output and with rear pump ...

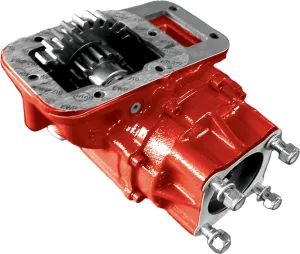

Power Take-off Hot Shift 2 gears. Hydraulic shifting. Mounting on both sides of Gearbox. Internal Ratio B (35%) C (44%) E (49%) AT 540 – 543 – 545 1:0.767 1:0.965 1: 1.071 CLT 740 D-FS, CLT 750-754-754 CR CLBT 750, HT 740-750-750 CRD HT 750 dB-DR-DRB 1:1.088 1:1.369 1: 1.520 MT 654 CR, MTB 643 […]
| SKU | Output type | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 240502B | Flange | B (35%) | - | - | 174.50 | 218.00 |
| 240502C | Flange | C (44%) | - | - | 174.50 | 218.00 |
| 240502E | Flange | E (49%) | - | - | 174.50 | 218.00 |
| 240503B | Pump (DIN 5462) | B (35%) | - | - | 174.50 | 218.00 |
| 240503C | Pump (DIN 5462) | C (44%) | - | - | 174.50 | 218.00 |
| 240503E | Pump (DIN 5462) | E (49%) | - | - | 174.50 | 218.00 |
| 240540B | Pump (SAE B Z=13) | B (35%) | - | - | 174.50 | 218.00 |
| 240540C | Pump (SAE B Z=13) | C (44%) | - | - | 174.50 | 218.00 |
| 240540E | Pump (SAE B Z=13) | E (49%) | - | - | 174.50 | 218.00 |
Power Take-off Hot Shift 2 gears. Hydraulic shifting. Mounting on both sides of Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (100 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Top, Right |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 25 |
| Note A | Rotation |
| Note B | Rotation |
| Note C | Solenoid standard 24V / Optional 12V. |
| Note D | Pressure switch |
| Note E | Lubrication hose |
| Note F | Shifting pipe (P/N. 9019499) |
| Optional: Full Shifting Kit 12/24V | P/N: 9058999 |
| Gearbox | AT-543, MT-653-DR, AT-545, MT-654-CR, CLBT-750(OPT.8BOLT), MTB-643, CLT 740 D-FS, CLT-750(OPT.8BOLT), CLT-754(OPT.8BOLT), CLT 754 CR, HT 740, HT 750, HT-740CRD(OPT.8BOLT), HT 750 DB, HT 750 DR, HT 750 DRB, MT-643, MT-644, AT-540, MT-647 |
| Output type | Pump (DIN 5462), Pump (SAE B Z=13), Flange |
| Internal ratio | C (44%), E (49%), B (35%) |
