REAR PUMP ADAPTER FIXING
ALLISON
Complement to securely fix the rear pump and adapter. Must be fitted with 3131 PTO special RP output and with rear pump ...

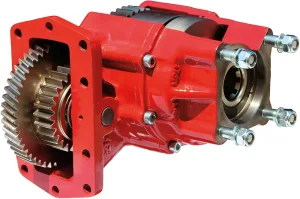

Hot Shift Power Take-off, 2 gears, only for Hydraulic shifting, internal lubrication. Mounting on both sides of Gearbox. Wide range of internal ratios, output ISO 4 bolts, output flange, SAE B, SAE BB or SAE C. Internal Ratio B (50%) C (58%) E (68%) G (78%) J (84%) M (97%) O (119%) Engine To […]
| SKU | Output types | Mounting Position | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|---|
| 241702B | Flange | Left | B (50%) | - | 320.00 | 202.00 | 208.00 |
| 241702C | Flange | Left | C (58%) | - | 320.00 | 202.00 | 208.00 |
| 241702E | Flange | Left | E (68%) | - | 320.00 | 202.00 | 208.00 |
| 241702G | Flange | Left | G (78%) | - | 320.00 | 202.00 | 208.00 |
| 241702J | Flange | Left | J (84%) | - | 320.00 | 202.00 | 208.00 |
| 241702M | Flange | Left | M (97%) | - | 320.00 | 202.00 | 208.00 |
| 241702O | Flange | Left | O (119%) | - | 320.00 | 202.00 | 208.00 |
| 241802B | Flange | Right | B (50%) | - | 320.00 | 202.00 | 208.00 |
| 241802C | Flange | Right | C (58%) | - | 320.00 | 202.00 | 208.00 |
| 241802E | Flange | Right | E (68%) | - | 320.00 | 202.00 | 208.00 |
| 241802G | Flange | Right | G (78%) | - | 320.00 | 202.00 | 208.00 |
| 241802J | Flange | Right | J (84%) | - | 320.00 | 202.00 | 208.00 |
| 241802M | Flange | Right | M (97%) | - | 320.00 | 202.00 | 208.00 |
| 241802O | Flange | Right | O (119%) | - | 320.00 | 202.00 | 208.00 |
| 241703B | Pump (DIN 5462) | Left | B (50%) | - | 320.00 | 202.00 | 208.00 |
| 241703C | Pump (DIN 5462) | Left | C (58%) | - | 272.00 | 202.00 | 208.00 |
| 241703E | Pump (DIN 5462) | Left | E (68%) | - | 272.00 | 202.00 | 208.00 |
| 241703G | Pump (DIN 5462) | Left | G (78%) | - | 272.00 | 202.00 | 208.00 |
| 241703J | Pump (DIN 5462) | Left | J (84%) | - | 272.00 | 202.00 | 208.00 |
| 241703M | Pump (DIN 5462) | Left | M (97%) | - | 272.00 | 202.00 | 208.00 |
| 241703O | Pump (DIN 5462) | Left | O (119%) | - | 272.00 | 202.00 | 208.00 |
| 241803B | Pump (DIN 5462) | Right | B (50%) | - | 272.00 | 202.00 | 208.00 |
| 241803C | Pump (DIN 5462) | Right | C (58%) | - | 272.00 | 202.00 | 208.00 |
| 241803E | Pump (DIN 5462) | Right | E (68%) | - | 272.00 | 202.00 | 208.00 |
| 241803G | Pump (DIN 5462) | Right | G (78%) | - | 272.00 | 202.00 | 208.00 |
| 241803J | Pump (DIN 5462) | Right | J (84%) | - | 272.00 | 202.00 | 208.00 |
| 241803M | Pump (DIN 5462) | Right | M (97%) | - | 272.00 | 202.00 | 208.00 |
| 241703 | Pump (DIN 5462) | Right | O (119%) | - | 272.00 | 202.00 | 208.00 |
Hot Shift Power Take-off, 2 gears, only for Hydraulic shifting, internal lubrication. Mounting on both sides of Gearbox. Wide range of internal ratios, output ISO 4 bolts, output flange, SAE B, SAE BB or SAE C.
| Atributo | Valor |
|---|---|
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 27 |
| Note A | Backlash check plug |
| Note B | Pump Rotation |
| Note C | Solenoid 24V DC (12V DC optional) |
| Note D | Pressure switch |
| Note E | Shifting hose |
| Optional: Full Shifting Kit 12/24V | P/N: 9058999 |
| Gearbox | HD-4440, HD-4500, HD-4560P, HD-4560PR, HD-4600, HD-4700, HD-4800, MD-3000, MD-3060P, MD-3060PR, MD-3066, MD-3070PT, HD-4000, MD-3200, HD-4060P, MD-3500, HD-4060PR, MD-3560P, HD-4430, MD-3560PR |
| Output types | Flange, Pump (DIN 5462) |
| Mounting Position | Left, Right |
| Internal ratio | B (50%), C (58%), E (68%), G (78%), J (84%), M (97%), O (119%) |
