039103 PTO side mount, 6 bolts, 2 gear mechanical shifting, 1:1,31
NISSAN
PTO NISSAN M5-40(ZD-30) MECHANIC-BACKWARDS CABLE Continuous Torque (Nm): 175 Intermittent Torque (Nm): 250 Max. Power (k...

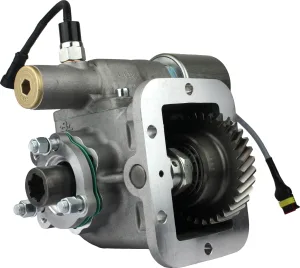

Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Electric shifting, mounting on left side of the Gearbox.
| SKU | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 0310630 | Vacuum Shifting | - | - | - | - |
| 0310530 | Mechanical Shifting | - | - | - | - |
| 0310430 | Pneumatic shifting | - | - | - | - |
| 0310330 | Solenoid-based Electric (needs 9094499 electric kit) | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Electric shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 180 |
| Intermittent Torque (Nm) | 250 |
| Power (1000 r.p.m.) | 25 C.V // 19 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 11 |
| Engine to PTO ratio | 1: 1,15 |
| Output type | Pump (UNI) |
| Gearbox | M5-35A (4,66:1) |
| Note A | Rotation |
| Note B | Electric Shifting |
| Note C | Electric Kit with Button control P/N 9094499 |
| Note D | Passing contact switch P/N 100070028 |
| Note E | Engage PTO, thread 1/4” BSP |
| Note F | Passing contact switch. P/N 100070022 |
| Note G | Connector with 3m. of cable P/N 9026899 |
| Note H | Engage PTO, thread 1/8” BSP |
| Note I | Mechanical Shift |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting, Solenoid-based Electric (needs 9094499 electric kit) |
