07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Hydraulic recovery winch with planetary gears, automatic brake, braking valve, and roller guide. Technical Datasheet 9028625 (10.000 kg) Layer 1 2 3 4 Line Pull (Kg) 10000 8144 6870 5940 Line speed (m/min) 10.5 12.9 15.3 17.7 Drum capacity (m) 9.3 20.7 34.3 50 9028725 (15.000 kg) Layer 1 2 3 4 Line Pull (Kg) […]
| SKU | Maximum line pull | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 9028725 | 10.000 Kg | 160.00 | 974.00 | 311.00 | 495.00 |
| 9028725 | 15.000 Kg. | 160.00 | 974.00 | 311.00 | 495.00 |

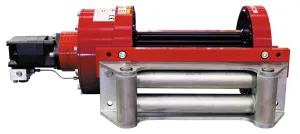

Hydraulic recovery winch with planetary gears, automatic brake, braking valve, and roller guide.
| Atributo | Valor |
|---|---|
| Maximum working pressure | 180 bar |
| Gear ratio | 27.14:1 |
| Clutch | Lever control |
| Brake | Automatic |
| Roller fairlead | 4 way-action |
| Maximum motor flow | 75L/min |
| *In accordance with SAE J706 | Wire Ø18mm |
| Maximum line pull | 10.000 Kg, 15.000 Kg. |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
