Description

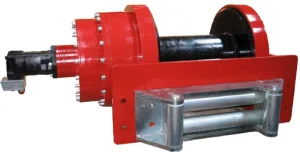

Hydraulic recovery winch with pneumatic shift 2 speeds, planetary gears, automatic brake, (activated in rest position), braking valve, and roller guide.

9028825
Layer 1 2 3 4 5
Drum capacity (m) 9.6 21.5 35.6 52 70.7
Low Speed
Line speed (m/min) 20000 16190 13600 11724 10303
Drum capacity (m) 3.75 4.6 5.5 6.4 7.2
High Speed
Line speed (m/min) 6600 5343 4488 3869 3400
Drum capacity (m) 11.3 13.9 16.6 19.1 21.8

This post is also available in: English (USA) (English (USA)) Español (España) (Spanish (Spain)) Español (Mexico) (Spanish (Mexico)) Deutsch (German) Français (French) Italiano (Italian) Português (Portuguese) 简体中文 (Chinese (Simplified))

Additional information

Maximum line pull

20.000 Kg

Maximum working pressure

180 bar

Gear ratio

27.14:1

Clutch

Pneumatic

Brake

Automatic

Roller fairlead

4 way-action

Maximum motor flow

75L/min

Net weight

50 0 Kg

*In accordance with SAE J706 :

Wire Ø24mm
