Description

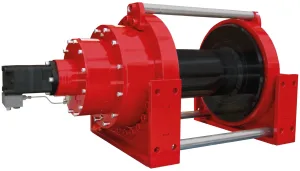

Hydraulic recovery winch with pneumatic shift 2 speeds, planetary gears, automatic brake, (activated in rest position), braking valve, and pressure roller.

9031625
Layer 1 2 3 4 5
Drum capacity (m) 11 25 41 60 81
Line speed (m/min) 3,1 3,7 4,4 5,1 5,7
Line pull 30000 24730 21034 18300 16195

This post is also available in: English (USA) (English (USA)) Español (España) (Spanish (Spain)) Español (Mexico) (Spanish (Mexico)) Deutsch (German) Français (French) Italiano (Italian) Português (Portuguese) 简体中文 (Chinese (Simplified))

Additional information

Maximum line pull

30000 Kg

Maximum working pressure

180 bar

Gear ratio

27.14:1

Clutch

Pneumatic

Brake

Automatic

Roller fairlead

4 way-action

Maximum motor flow

75L/min

Net weight

590 Kg

*In accordance with SAE J706.

Wire Ø24mm
