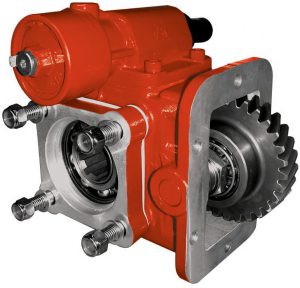

039103 PTO side mount, 6 bolts, 2 gear mechanical shifting, 1:1,31
NISSAN
PTO NISSAN M5-40(ZD-30) MECHANIC-BACKWARDS CABLE Continuous Torque (Nm): 175 Intermittent Torque (Nm): 250 Max. Power (k...
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum shifting, mechanical and pneumatic, mounting on left side of the Gearbox. Optional: Passing contact switch. Note A Engage PTO, thread 1/4” BSP Note B Rotation Note C Passing contact swith. P/N 100070017 Note D Connector with 3m. of cable P/N 9026899 Note […]
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 038703 | Pump (DIN 5462) | Pneumatic shifting | - | - | - | - |
| 038702 | Flange | Pneumatic shifting | - | - | - | - |
| 038803 | Pump (DIN 5462) | Vacuum Shifting | - | - | - | - |
| 039103 | Pump (DIN 5462) | Mechanical Shifting | - | - | - | - |
| 038802 | Flange | Vacuum Shifting | - | - | - | - |
| 039102 | Flange | Mechanical Shifting | - | - | - | - |
| 038730 | Pump (UNI) | - | - | - | - | - |
| 039130 | Pump (UNI) | Mechanical Shifting | - | - | - | - |
| 038830 | Pump (UNI) | Vacuum Shifting | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum shifting, mechanical and pneumatic, mounting on left side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 175 |
| Intermittent Torque (Nm) | 250 |
| Power (1000 r.p.m.) | 25 C.V // 19 kW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 7.5 |
| Engine to PTO ratio | 1: 1,36 |
| Gearbox | M5-40 (ZD-30) |
| Output type | Flange, Pump (DIN 5462), Pump (UNI) |
| Shifter type | Mechanical Shifting, Vacuum Shifting, Pneumatic shifting |
