039103 PTO side mount, 6 bolts, 2 gear mechanical shifting, 1:1,31
NISSAN
PTO NISSAN M5-40(ZD-30) MECHANIC-BACKWARDS CABLE Continuous Torque (Nm): 175 Intermittent Torque (Nm): 250 Max. Power (k...

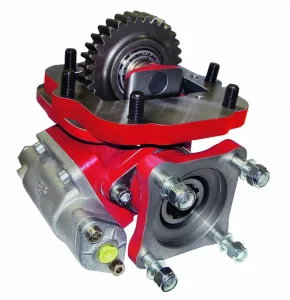

Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on left side of the Gearbox. Optional: Passing contact switch. Note A Air connection, thread 1/4” BSP Note B Rotation Note C Passing contact swith. P/N 100070003
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 039303 | Pump (DIN 5462) | - | - | - | - |
| 039302 | Flange | - | - | - | - |
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting, mounting on left side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 13 |
| Engine to PTO ratio | 1: 1,12 |
| Gearbox | MPS-62T |
| Output type | Flange, Pump (DIN 5462) |
