068803 SIDE MOUNT VACUUM- SINGLE ACTING
IVECO
Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum shifting, mounting on left side of the Gear...
Twin output Power Take-off 3 gears, ratio (top output) 1:1,30. (bottom output) 1:1,72. Mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch. Included lubrication pipe. Main Data Upper Output Bottom Output Par nominal Torque (Nm) Continuous 350 300 Intermittent 490 420 Power (HP) 1000 r.p.m 52 C.V // 39 […]
| SKU | Upper output type | Bottom output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 067552 | Flange | Flange | - | - | - | - |
| 067551 | Flange | Pump | - | - | - | - |
| 067550 | Pump | Flange | 17.00 | 222.00 | 110.00 | 260.00 |
| 067553 | Pump | Pump | 17.00 | 222.00 | 110.00 | 260.00 |

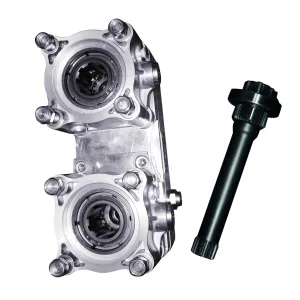

Twin output Power Take-off 3 gears, ratio (top output) 1:1,30. (bottom output) 1:1,72. Mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch. Included lubrication pipe.
| Atributo | Valor |
|---|---|
| Weight (Kg) | 17 |
| Mounting Position | Rear |
| Max. Continuous Torque for both outputs | 350 Nm. |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Flange drive |
| Note E | Passing contact switch. P/N 9024999 |
| Note F | Pressure contact P/N (100070018) |
| Note G | Lubrication kit. Part Number: 9070099 |
| Gearbox | 2895.9 |
| Upper output type | Flange, Pump |
| Bottom output type | Flange, Pump |
