0723450 2 Independent Outputs – Closed pump cover
MERCEDES

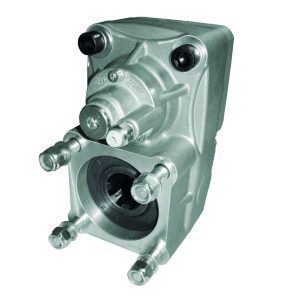

Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
PTO MB 1.32 C.P. FOR PTO MB1 ORIGINAL Continuous Torque (Nm): 300 Intermittent Torque (Nm): 420 Max. Power (kW):32 Mounting Position: Posterior / Rear Pump rotation: Derecho / Right Hand Mounting Kit: 8019733
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 0714502 | Flange | - | - | - | - |
| 0714503 | Pump (DIN 5462) | - | - | - | - |
PTO MB 1.32 C.P. FOR PTO MB1 ORIGINAL Continuous Torque (Nm): 300 Intermittent Torque (Nm): 420 Max. Power (kW):32 Mounting Position: Posterior / Rear Pump rotation: Derecho / Right Hand Mounting Kit: 8019733
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 11.5 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Pressure switch P/N (100070018) |
| Note D | Passing contact switch (9024999) |
| Gearbox | MB-1 (ORIGINAL) |
| Output type | Flange, Pump (DIN 5462) |
