0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...

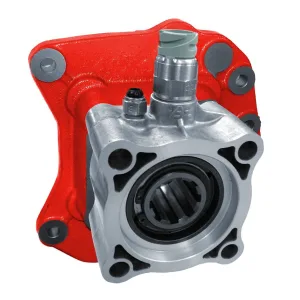

Power Take-off one gear, ratio 1:1 to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 7 bolts-window of the Gearbox. Optional: Passing contact switch. Engine to PTO ratio Gearbox Ratio High Low G 100 1: 0,5 1: 0,42 G 140-8 1: 0,76 1: 0,48
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 0718102 | Flange | - | - | - | - |
| 0718103 | Pump (ISO) | - | - | - | - |
Power Take-off one gear, ratio 1:1 to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 7 bolts-window of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 500 |
| Intermittent Torque (Nm) | 700 |
| Power (1000 r.p.m.) | 70 C.V // 52 KW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 12 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 9024999 |
| Note D | Pressure switch. P/N 100070018 |
| Gearbox | G100, G140-8 |
| Output type | Flange, Pump (ISO) |
