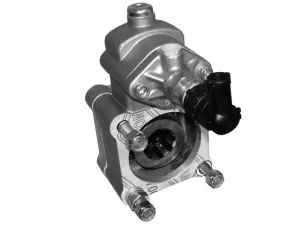

0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
VB MB 1:1 ORIGINAL PTO MB-1 Continuous Torque (Nm): 590 Intermittent Torque (Nm): Max. Power (kW):63 Mounting Position: Posterior / Rear Pump rotation: Izquierdo / Left Hand Mounting Kit: 8019733
| SKU | PTO Type | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 0718202 | Estándar | Flange | - | - | - | - |
| 0718203 | Estándar | Pump (DIN 5462) | - | - | - | - |
| 0721602 | NA/123-10b | Flange | - | - | - | - |
| 0721603 | NA/123-10b | Pump (DIN 5462) | - | - | - | - |
VB MB 1:1 ORIGINAL PTO MB-1 Continuous Torque (Nm): 590 Intermittent Torque (Nm): Max. Power (kW):63 Mounting Position: Posterior / Rear Pump rotation: Izquierdo / Left Hand Mounting Kit: 8019733
| Atributo | Valor |
|---|---|
| Gearbox | MB-1 (ORIGINAL) |
| Continuous Torque (Nm) | 590 |
| Power (1000 r.p.m.) | 81 C.V. // 61 KW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 4.12 |
| PTO Type | Estándar, NA/123-10b |
| Output type | Flange, Pump (DIN 5462) |
