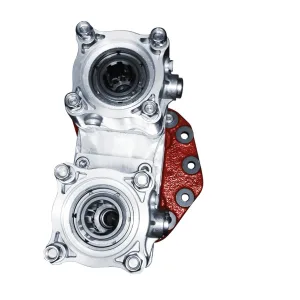

0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 7 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch. Main Data Upper Output Bottom Output Par nominal Torque (Nm) Continuous 350 300 Intermittent 490 420 Power (HP) 1000 r.p.m 52 C.V // 39 kW 42 […]
| SKU | Upper output type | Bottom output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 0719652 | Flange | Flange | - | - | - | - |
| 0719653 | Pump | Pump | - | - | - | - |
| 0719650 | Pump | Flange | - | - | - | - |
| 0719651 | Flange | Pump | - | - | - | - |
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 7 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Mounting Position | Rear |
| Max. Continuous Torque for both outputs | 490 Nm. |
| Continuous Torque (Nm) | 350 (Upper output), 300 (Bottom output) |
| Intermittent Torque (Nm) | 490 (Upper output), 420 (Bottom output) |
| Power (1000 r.p.m.) | 52 C.V // 39 kW (Upper Output), 42 C.V // 32 kW (Bottom Output) |
| Weight (Kg) | 14 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Passing contact switch (9024999) |
| Note E | Flange drive |
| Note F | Pressure switch. P/N100070018 |
| Gearbox | G100, G140-8 |
| Upper output type | Flange, Pump |
| Bottom output type | Flange, Pump |
