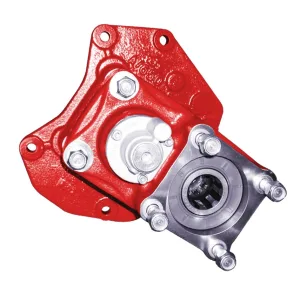

0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
Base PTO + flange kit (without shaft), internal ratio 1:1,32 to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox. Optional: Passing contact switch and adapter shaft. RATIO Normal High ENGINE TO PTO RATIO G131-9/14.57-1.0 1:0,974 G210-16/14.2-0.83 1:1,122 1:1,360 G141-9/14.57-1.0, G211-16/17.0, G231-16/17.0, G241-16K/17.0-1.0 1:0,937 1:1,122 G221-9/16.15-1.0 1:0,978 G240-16/11.7, G280-16K/11.72-0.69, […]
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 07219K02 | Flange | - | - | - | - |
| 07219K03 | Pump (DIN 5462) | - | - | - | - |
Base PTO + flange kit (without shaft), internal ratio 1:1,32 to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox. Optional: Passing contact switch and adapter shaft.
| Atributo | Valor |
|---|---|
| Gearbox | G260-16-9.75-0.57, G280-16-11.72-0.69 NewAMT, G280-16K-11.72-0.69, G131-9-14.57-1.0, G281-12-14.93-1.0 NewAMT, G211-16-17.0, G281-12K-14.93-1.0, G141-9-14.57-1.0, G330-12-11.64-0.78 NewAMT, G210-16-14.2-0.83, G330-12K-11.64-0.78, G211-12-14.93-1.0 NewAMT, G211-12K-14.93-1.0, G221-9-16.15-1.0, G230-12-11.67-0.78 NewAMT, G230-12K-11.67-0.78, G230-16S/14.2-0.83, G231-16-17.0, G240-16-11.7, G241-16K-17.0-1.0 |
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 16 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Pressure switch. P/N 100070018 |
| Note E | Passing contact switch. P/N 9024999 |
| Note F | Closed lubrication pump cover |
| Output type | Flange, Pump (DIN 5462) |
