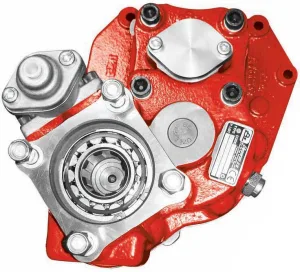

07223K03 Rear Pneumatic

07223K03

Power take-off 3 gears, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox. Internal ratio 1:2 Main Data Max. Torque (Nm) Continuous 300 Intermittent 420 Power (1000 r.p.m.) 42 CV // 32 Kw Mounting position Rear Pump rotation Anti Clockwise Weight (Kg) 23,8 Engine to PTO ratio G210-16/14.2-0.83 […]

Variantes

Power take-off 3 gears, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox.

Internal ratio 1:2

Main Data
Max. Torque (Nm)	Continuous		300
Max. Torque (Nm)	Intermittent		420
Power (1000 r.p.m.)			42 CV // 32 Kw
Mounting position			Rear
Pump rotation			Anti Clockwise
Weight (Kg)			23,8
Engine to PTO ratio	G210-16/14.2-0.83	Normal High	1:1,17 1:2,06
	G211-16/17.0, G231-16/17.0, G241-16K/17.0-1.0	Normal High	1:1,42 1:1,17
	G221-9/16.15-1.0		1:1,48
	G240-16/11.7, G280-16K/11.72-0.69, G280-16/11.72-0.69 NewAMT	Normal High	1:2,06 1:2,48
	G260-16/9.75-0.57	Normal High	1:2,48 1:3
	G211-12K/14.93-1.0, G211-12/14.93-1.0 NewAMT, G281-12K/14.93-1.0, G281-12K/14.93-1.0, G281-12/14.93-1.0 NewAMT	Normal High	1:1,62 1:2,06
	G230-12K/11.67-0.78, G230-12/11.67-0.78 NewAMT, G230- 16S/14.2-0.83, G330-12K/11.64-0.78, G330-12/11.64-0.78 NewAMT	Normal High	1:2,06 1:2,64

Este producto no tiene especificaciones.
