0723450 2 Independent Outputs – Closed pump cover
MERCEDES

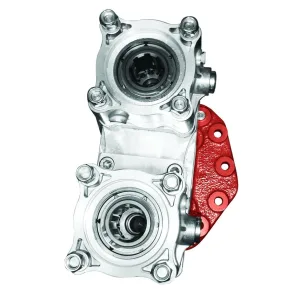

Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
Power Take-off twin output 3 gears + flange kit (without shaft), ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch. Main Data Upper Output Bottom Output Par nominal Torque (Nm) Continuous 350 300 Intermittent 490 420 Power (HP) 1000 r.p.m 52 […]
| SKU | Output types | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 07224K52 | Plate/Plate | - | - | - | - |
| 07224K51 | Plate/Pump | - | - | - | - |
| 07224K53 | Pump/pump | - | - | - | - |
| 07224K50 | Pump/Plate | - | - | - | - |
Power Take-off twin output 3 gears + flange kit (without shaft), ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch.
Ps.: Maximum transmission lange Ø180 mm. It is not possible to mount two large pumps
| Atributo | Valor |
|---|---|
| Max. Continuous Toque for both outputs | 490 Nm. |
| Weight (Kg) | 15 |
| Mounting Position | Rear |
| Adapter shaft kit | G330, Z=16. L=252mm, G330 Retarder. Z= 16. L277mm, G281 Powershift 3, Z=16. L=293mm (Aquatarder) |
| Gearbox | G230-16S/14.2-0.83, G231-16-17.0, G240-16-11.7, G241-16K-17.0-1.0, G260-16-9.75-0.57, G280-16-11.72-0.69 NewAMT, G280-16K-11.72-0.69, G281-12-14.93-1.0 NewAMT, G281-12K-14.93-1.0, G330-12-11.64-0.78 NewAMT, G330-12K-11.64-0.78, G211-16-17.0, G210-16-14.2-0.83, G221-9-16.15-1.0, G230-12-11.67-0.78 NewAMT, G230-12K-11.67-0.78 |
| Continuous Torque (Nm) | 350 (Upper output), 300 (Bottom output) |
| Intermittent Torque (Nm) | 490 (Upper output), 420 (Bottom output) |
| Power (1000 r.p.m.) | 52 C.V // 39 kW (Upper Output), 42 C.V // 32 kW (Bottom Output) |
| Rotation PTO | Clockwise (Pump), Anti Clockwise (Flange) |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Lubrication Kit (9013899) |
| Note E | Pressure switch. P/N 100070018 |
| Note F | Flange Drive |
| Note G | Closed lubrication pump cover |
| Note H | Passing contact switch. P/N 9024999 |
| Output types | Plate/Plate, Plate/Pump, Pump/pump, Pump/Plate |
