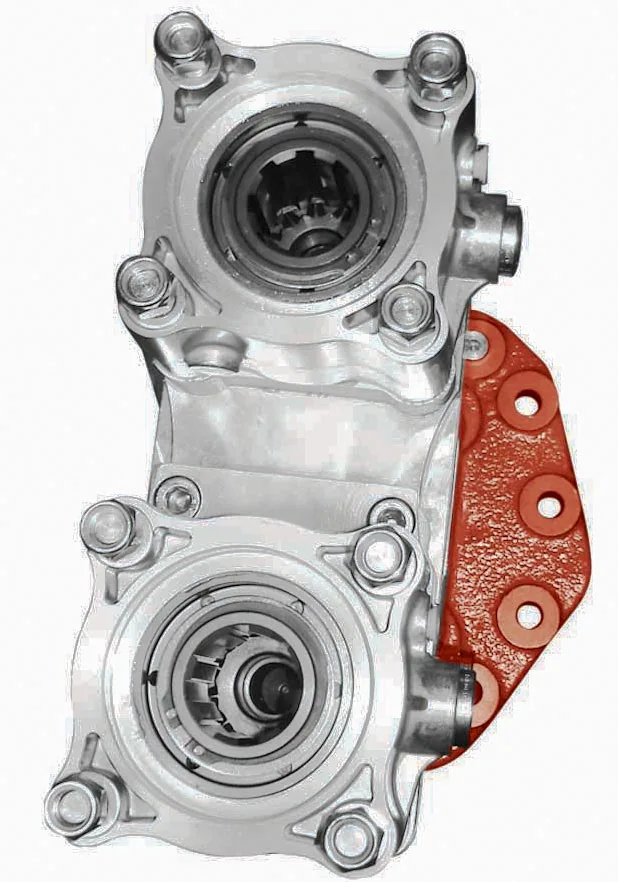

0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
Base PTO + flange kit (without shaft), output ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox. Optional: Passing contact switch and adapter shaft. NormalHighNormalHigh Engine to PTO ratio Gearbox Ratio 1:1,35 1:1,85 Normal High Normal High G210-16/14.2-0.83 1:1,148 1:1,391 1:1,573 1:1,906 G231-16/17.0, G241-16K/17.0-1.0 1:0,959 1:1,148 1:1,314 1:1,573 G221-9/16.15-1.0 […]
| SKU | Output type | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 07235K02 | Flange | 1: 1,35 | - | - | - | - |
| 07232K02 | Flange | 1: 1,85 | - | - | - | - |
| 07235K03 | Pump (DIN 5462) | 1: 1,35 | - | - | - | - |
| 07232K03 | Pump (DIN 5462) | 1: 1,85 | - | - | - | - |
Base PTO + flange kit (without shaft), output ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox. Optional: Passing contact switch and adapter shaft.
NormalHighNormalHigh
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 400 |
| Intermittent Torque (Nm) | 500 |
| Power (1000 r.p.m.) | 57 C.V // 43 KW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 14 |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Closed lubrication pump cover, Warning: A pump with a weight over 12 kg. must be supported by brackets., Not valid for G131 or G211., Maximum transmission Flange size Ø180mm. |
| Gearbox | G210-16-14.2-0.83, G221-9-16.15-1.0, G230-12-11.67-0.78 NewAMT, G230-12K-11.67-0.78, G230-16S/14.2-0.83, G231-16-17.0, G240-16-11.7, G241-16K-17.0-1.0, G260-16-9.75-0.57, G280-16-11.72-0.69 NewAMT, G280-16K-11.72-0.69, G281-12-14.93-1.0 NewAMT, G281-12K-14.93-1.0, G330-12-11.64-0.78 NewAMT, G330-12K-11.64-0.78 |
| Output type | Flange, Pump (DIN 5462) |
| Internal ratio | 1: 1,35, 1: 1,85 |
