0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
Heavy Duty, rear PTO with ISO 4 bolts rotated output. Pneumatic shifting. Optional bayonet or pressure switch. Internal Ratio 1: 1.8 1: 1.5 1: 1.3 Torque (Nm) Continuous 350 400 450 Intermittent 490 560 630 Power (1000 r.p.m.) 75 C.V // 56 kW 85 C.V // 64 kW 96 C.V // 72 kW Mounting […]
| SKU | Output type | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 0725903 | Pump (DIN 5462) | 1: 1.8 | - | - | - | - |
| 0725902 | Flange | 1: 1.8 | - | - | - | - |
| 0726003 | Pump (DIN 5462) | 1:1.5 | 12.00 | 138.50 | 112.00 | 185.50 |
| 0726002 | Flange | 1:1.5 | - | - | - | - |
| 0726103 | Pump (DIN 5462) | 1:1.3 | 12.00 | 138.50 | 112.00 | 185.50 |
| 0726102 | Flange | 1:1.3 | - | - | - | - |
Heavy Duty, rear PTO with ISO 4 bolts rotated output. Pneumatic shifting. Optional bayonet or pressure switch.

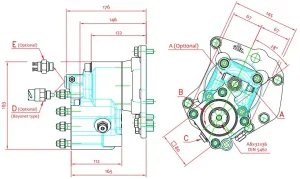

| Atributo | Valor |
|---|---|
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Passing contact switch (9024999) |
| Note E | Pressure switch. P/N 100070018 |
| Gearbox | G4 110-6-9, G4 65-6-9, G4 65-7-11, G4 95-6-9, G4 95-7-11, GV4 110-6-9, GV4 65-6-9, GV4 95-6-9 |
| Output type | Flange, Pump (DIN 5462) |
| Internal ratio | 1: 1.8, 1:1.5, 1:1.3 |
