0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...

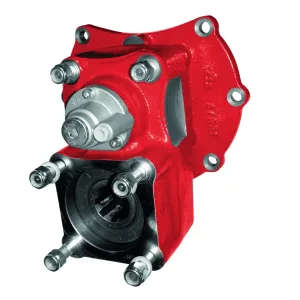

Power Take-off two gears, ratio 1:1,32 to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox. Optional: Passing contact switch. Engine to PTO ratio Gearbox Ratio G60-6/9.2,G71-6/9.20-1.0 1:0,594 G85-6/6.7,G90-6/6.70-0.73 1:0,820
| SKU | Type | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 076002 | G-60/G-85 Central Piston | Flange | 12.60 | 119.00 | 112.00 | 192.00 |
| 076003 | G-60/G-85 Central Piston | Pump (DIN 5462) | - | 119.00 | 112.00 | 192.00 |
| 071002 | G-60/G-85 Toma Constante Constant Mesh | Flange | - | - | - | - |
| 0710003 | G-60/G-85 Toma Constante Constant Mesh | Pump (DIN 5462) | 12.60 | 149.00 | 112.00 | 192.00 |
Power Take-off two gears, ratio 1:1,32 to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 8 bolts-window of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 12.6 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Passing contact switch. P/N 100070018 |
| Note E | Passing contact switch. P/N 9024999 |
| Gearbox | G60-6-9.2, G71-6-9.20-1.0, G85-6-6.7, G90-6-6.70-0.73 |
| Type | G-60/G-85 Central Piston, G-60/G-85 Toma Constante Constant Mesh |
| Output type | Flange, Pump (DIN 5462) |
